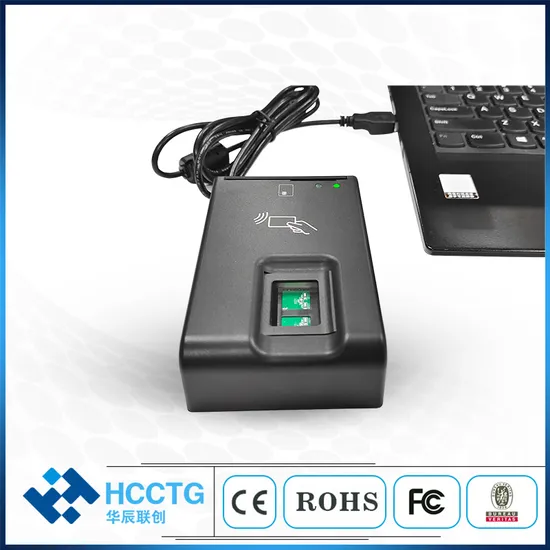

Dual Interface IC NFC RFID Scanner for Qr Access Control Sfr02

Product Description

Dual Interface IC NFC RFID Scanner for QR Access Control SFR02 SFR02 Pressing optical fingerprint technology is adopted. It has the characteristics of low power consumption, high sensitivity and high signal-to-noise ratio. Its advanced adaptive fingerprint recognition algorithm can automatically check the image quality in real time, automatically locate the fingerprint image region, and automatically optimize the image quality intelligently, supporting small area recognition; It can realize the two-way input and comparison of fingerprints, and perfectly analyze the touch and incomplete fingerprints in various dry and wet environments. Dry/wet/rough fingers have good imaging quality, suitable for a wide range of people. Comply with FBI PIV-071006, Mobile ID FAP 20 standard.
Supports ISO/IEC 7816 contact and 13.56 MHz contactless smart cards and ISO/IEC 7816 standard SAM cards, ISO18092 NFC protocol, USB TYPE A interface data cable, CCID low-level protocol, general PC/SC dynamic library, This multi-function device of international standard protocol can be easily connected to PC and mobile portable terminal. It is widely used in various information security fields such as secure identity authentication, PKI key authentication, fingerprint data collection, digital signature authentication, identity certificate issuance, etc.
Features 1.USB2.0, PC/SC, CCID Compliant 2.Support ISO-7816, 1/2/3 T=0 and T=1,Class A ,B ,C 3.Support ISO-14443 Type A ,Type B ,Type C ,ISO18092 4.High quality fingerprint image: fingerprint image dynamic range of more than 200, image without distortion 5.Dynamic fingerprint detection: dynamic detection of valid fingerprint image information, accurate cutting fingerprint image 6.High speed image capture: image frame rate up to 30 frames/SEC 7.Compatible with international fingerprint collection standards: single finger plane collection 8.Certification to follow: FBI PIV-071006, Mobile ID FAP 20 9.The fingerprint part can be customized to Suprema BM-SLIM2 Product Parameters

Basic Parameters	Host Interface	USB 2.0 CCID (Compliant USB 1.1 and 3.0)
	Communication Rate	12Mbps(USB 2.0 Full speed)
	Firmware Update	Support
	Power	USB Bus Power Supply(5V/2A)
	Contact	5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C
		• UP to 600 kbps ( Depends on Card Chip type) • TA1=97
		Clock Frequencies up to 5 MHz
		ID-1 Standard Size Contact Card
		Support 6Pin and 8Pin Smart Card
	Contactless	ISO 14443 Part 1~4 ISO 18092
		Frequencies: 13.56MHZ Card Communication Rate Up to 848 kbps
		MIFARE™ (Classic, Ultralight, Ultralight C, MIFARE PLUS, DESFire, DESFire EV1 2/4/8k) Cards FeliCa™, Calypso, CD21, NFC Forum Tag types 1/2/3/4, Topz512, NTAG424 DNA, NTAG413 DNA Tags Type A & B & C CPU Cards
Fingerprint Scanner	Image Resolution	500DPI±1%
	Image Size	400 x 300 pixels
	Acquisition Window Area	16.4mm x 21.1mm
	Acquisition Area	15.24mm x 20.32mm
	Image Dynamic Range	≥210 Scale
	Image Gray Scale	8 bit/256 Scale
	Image Frame Rate	30 frame/Sec
	Aberration Rate	≤1%
	Sensor Type	Optical
	Image Quality Standards	FBI PIV-071006 / Mobile ID FAP20
	SDK Platform	C++, JAVA
	Operating System	Windows 7, Android 4.0 and above
	Customization	Suprema BM-SLIM2 Module is Optional
Physical parameters	Weight (g)	430g
	Status Indication	LED
	Power Supply Mode	USB Bus Power Supply
	Contact Card Type	ID1 Card Holder (Optional Landing Type)
	USB Line	Type A USB, 1.5 meter
	Dimensions (L * W * H)	130 * 90 * 52mm
Environment	Operating	-10 to 70°C
	Storage Temperature (°C)	-20 to 85°C
	Operating Humidity	Up to 95% RH non-condensing
Standard	Standard Compliance	ISO-7816 Class A, B, C Standard
		ISO 14443 Type A, B, C Standard
		CE,ROHS
		PC/SC Standard
		USB 2.0 Standard
		CCID Standard
	API	PC/SC Lite / WINSCARD API

Company Profile After Sales Service
FAQ 1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers' various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;

---
