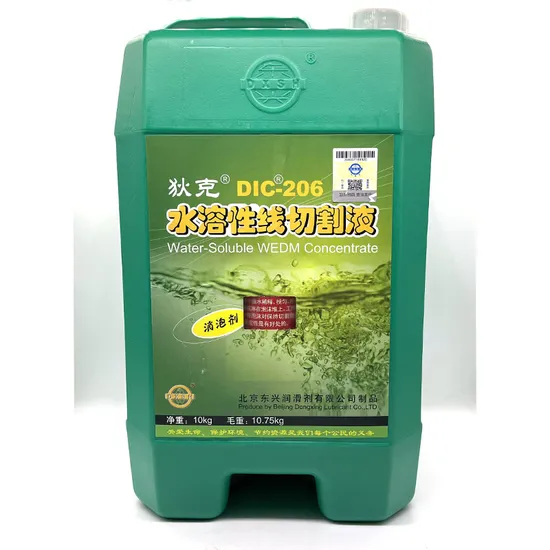

Dic-206 Water-Soluble Wedm Concentrate Wedm Liquid

Product Description

Type:	Cutting Fluids
Application:	Wire EDM machine
Place of Origin:	Beijing, China
Brand Name:	DIC-206 WEDM Concentrate
Size:	10kg/pc
Ingredient	Green product for the environment
Package:	Plastic pallet

Product Description
DIC-206 is energy-saving and emission-reduction type WEDM fluid. The formula of DIC-206 Water-Soluble WEDM Concentrate is completely made up of water-soluble materials. Electrical corrosion products can disperse in the water solution quickly, and could be separated after sedimentation and filtration. Rat oral acute toxicity tests result is "non-observed toxicity". No black sludge will emerge on the cutting surface of workpiece. It is the best working fluid for "Medium speed WEDM" (NC reciprocating travelling wire electrical-discharge machines with repeated cut function); with outstanding features of health and safety and so on. All of the RoHS Directive items testing results are "N/D" (not detected).

Application
1. A suitable filter (we can offer) must be installed on the exit of circulating pump to remove larger particles of electrical corrosion products. Then, the effect of cutting process could be ensured, and the using term of working fluid could be long.
2. DIC-206 cannot be blended with other WEDM fluids for use.
3. When using DIC-206 instead of emulsion coolant, the following steps shall be done:
A. The whole fluid feeding and circulating system, after draining off the previous emulsion, shall be cleaned thoroughly with suitable cleaning agent.B. The machining parameters shall be regulated: increasing the electric current and the feed rate properly.
4. If there are some oxidation products leaving on the machined surface of workpieces after operating with DIC-206, use alcohol to erase. Or, grit blasting can get better effect.
5. Rust protection of workpieces and other ferrous metal parts must be done every week, using 16.7% working fluid coating on the surfaces to be protected with brush or other adequate tools.
6. Electrical corrosion products that leave on the bridge board, bracket and operating platform shall be cleaned up often (about one or two times one week).
