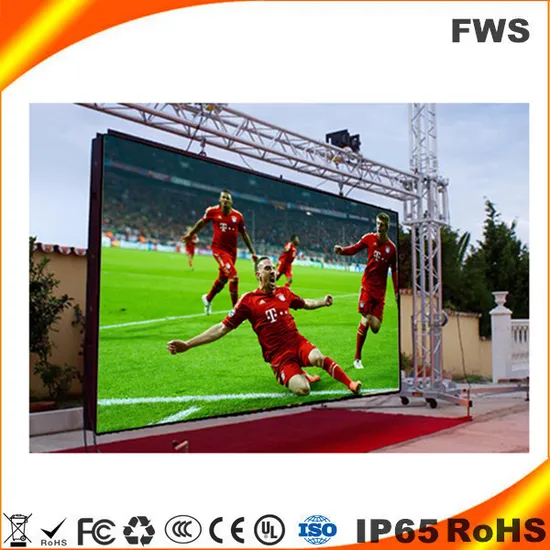

High Brightness P10 (P6 P8mm) SMD Full Color Outdoor Advertising LED Screen

Product Description

We have excellent research and development department and independent design ability. Our main products include indoor full color led display screen, led display, outdoor full-color led to wireless car use screen, etc.
Can be used for shopping, banking, bus station, railway stations, urban centers, airports, schools, factories, buses, taxis, and so on. We have many methods and excellent after-sell service to sell our products all over the world.
We are a strong and lasting company that has survived in this industry for over 11 years. We have many prestigious projects finished in many countries, including America, England, France, Germany, Turkey, UAE, KSA, Pakistan, Russia, etc. Therefore, we have many experiences in exporting. Product Description Module Pictures
Cabinet pictures
Product Features 1) This cabinet of SMD outdoor LED display can be make up large advertising LED wall with great advertising effect.
2) It's suitable for stage, bank, promotion, exhibition, station, KTV, stadium, airport and all outdoor places.
3) Ultra-thin cabinet and modular design can save install and maintain cost for you and also improve work efficiency.
4) Reasonable PCB design and new plastic cover with new mold improve the quality of LED modules.
5) Constant current driver which can make refresh rate up to 3840Hz load with single receiving card per cabinet.
6) High quality product ensure stable and clear image output.
7) Special waterproof design protect your product out of water, the high quality is worthy of trust.
8) The Outdoor SMD LED Display features LINSN control system which ensures great quality output,
high resolution display, fast loading time and high refresh rate.
Product Parameters

LED Lamp
Type	SMD3535
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV: (800-960mcd )
Chip parameters	Green (520-525nm) IV: (1350-1650mcd)
Chip parameters	Blue (470-475nm) IV: (330-400mcd)
LED Module
Pixel Pitch	10mm
Module Size	320×160
Module Resolution	32×16=512(Dots)
Module Weight	0.5kg
LED Cabinet
Pixel Density	10000 Dots/sqm
Cabinet Dimension(W*H*D)	960×960×130mm
Cabinet Resolution	96×96=9216(Dots)
Module Quanty /Cabinet	6×3=18(PCS)
Cabinets Material	Steel or Iron
Cabinet Weight	41kg
Non-Flatness	Less than 0.5mm
Module interval	Less than 0.5mm
Brightness	>8000CD/sqm
Color temperature	6500-8000K
Viewing Angle	120(Horizontal), 120(Vertical)
Nearest Viewing Distance	13m
Power Consumption (Max)	1000 w/sqm
Power Consumption (Average)	300 w/sqm
Refresh Rate	>1000Hz
Drive Mode/Driver Position	Constant driving 1/4 Scan, Combined diver board
Display Function	Text, Graphics, Video
Frame Frequency	No less than 60 frame/sec
Input Voltage	AC110-220V±10%, 50/60Hz
Output Voltage	DC-5V, 40A/60A/80A
Color Grayscale	16bit
Color Processing	R(1024)×G(1024)×B(1024)
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
MTBF( mean time between failures)	5000 hours
Life-span	100, 000 hours
Protection Level(front/back)	IP66/IP54
Malfunction DOT Rate	Less than 0.0001
Working Temperature	-30oC-50oC
Humidity	15%-85%
Control System
Control Mode	Synchronization/Asynchronization
Control System	Sending Card, Receiving Card, Receiving HUB
Software	LED Studio (FWS-linsn)
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German,
Control Card Input	DVI, USB; RJ45, HDMI(Sold separately)
Input Signal	AVI/MPG/MPEG/TXT. etc
PC Operating System	Microsoft Windows 10, Windows 7 and XP
Communication Type	Net cable; 3G, WiFi(Sold separately)
Certificate	CE, RoHS, FCC, ISO9001, TUV

LED Display Case
Our Cooperation Brand
Packaging & Delivery

Company Profile
Our Certifications
Trade Terms
1) Payment:T/T, usually 30% prepayment before production, 70% balance to be paid before delivering, it also change according to total quantity
2) Production lead time less 20sqm:7-15 days, more than 50 sqm:30 days
3) Sample can be delivered in 30 days
4) Shipping port: Shenzhen, Mainland China
5) Discounts are offered based on order quantities
6) MOQ:1sqm/1pcs
Our service
1) Your inquiry related to our products or prices will be replied in 24 hrs.
2) Well-trained and experienced staffs to answer all your enquires in fluent English.
3) OEM&ODM, any your customized screen we can help you to design and put into product.
4) Distributoer ship are offered for your unique design and some our current models.
5) Protection of your sales area, ideas of design and all your private information.
1. Free training:
You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.
2. Installation:
We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day; Or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.
3. Service after sales:
If you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get you E-mail or call, and offer you a good solution for your problem

---
