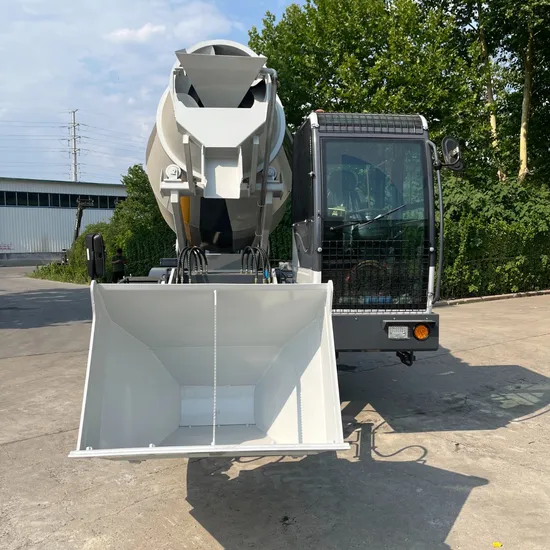

Factory Low-Priced Sales of 5.5 Cubic Meters with Integrated Mobile Chassis, Electronic Control Button, Four-Way Pilot Handle, Self Loading Mixer Truck

Product Description

MODEL NO	HK5.5 Model: HK5.5
TYPE	Integral frame chassis movable, self loading, mixing, transporting
FUNCTION	concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging
:PRODUCTIVITY	BATCH≤15MINS, 4BATCHS/HOUR
	4 x 4
steering	Front steering
ENGINE	YUCHAI ENGINE: FOUR-CYLINDER 2200RPM,110KW
SPEED	HIGH SPEED: 38.5KM/H; LOW SPEE:7.5KM/H
Gear number	Three forwards, three backwards
Fuel consumption	Idle state 2L-3L, working state 8L-10L.
TIRE	16/70-24(Steel wire tyre)

DRUM	Geometric volume 6.8 cubic meters, the best stirring 4.5-5.5 cubic meters
Spiral blade in tank	Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right
mixing tank 270°discharges	The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle
TIPPING CHUTE	Equipped with 2 chute for detachable to increase discharging length
Tilt of mixing tank	16°
SHOVEL	shovel capacity: 0.72³
Bucket discharge switch	Hydraulic gate, electric control
OPERATION HANDLE	ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE
MOVING HYDRAULIC	(DENGHONG)PUMP:DENGHONG
	Torque converter(HANK)
Work hydraulic	(DENGHONG) PUMP/valve: DENGHONG
Mixing system	SPEED REDUCER:(HANK)
	Mixing motor(ZHENJIANG DALI)
Drive axle	LIUFENG
WATER SUPPLY	HYDRAULIC DRIVING SELF-PRIMIING PUMPS.
HIGH-PRESSURE WATER PUMP WASH	HIGH-PRESSURE WATER PUMP WASH
Weighing system	Electronic weighing system (language optional)
VOLTAGE	Battery 24V-100A 2 pieces
HYDRAULIC OIL BOX	TANKAGE180L, SUMMER:NO68 HYDRAULIC OIL, WINTER:NO46 HYDRAULIC OIL, VERY COLD ZONE: NO35 HYDRAULIC OIL
Water tank capacity	620L
Diesel tank capacity	190L
whole weight	COMPLETE VEHICLE KERB MASS 9200kg
CAB	Prevent falling objects cab
	Adjustable steering wheel
	Adjustable seat
	Seat belts
	Fire extinguisher
	Astern image
ALARM LAMP	STANDARD CONFIGURATION
RADIO	STANDARD CONFIGURATION
A/C	optional
ESCAPE HAMMER	STANDARD CONFIGURATION
Astern sound prompt	STANDARD CONFIGURATION
Walking control mode	STANDARD CONFIGURATION:Electric control

Our Advantages
1.Who we are?
Shandong Daoji International Trade Co., Ltd. is a trading company focusing on the field of engineering machinery. It is committed to providing customers with high-quality, high-performance engineering machinery equipment and a full range of services. With our deep industry experience and extensive resource network, we have developed into an influential enterprise in the industry.
Since its establishment, the company has always adhered to the market-oriented, customer demand-centric, and actively expanded its business scope. The engineering machinery products we operate cover various common equipment such as excavators, loaders, rollers, cranes, etc., which are widely used in engineering fields such as construction, roads, bridges, and mines. We have established close cooperative relations with many internationally renowned engineering machinery manufacturers to ensure that the quality and performance of our products reach international advanced levels.
2.Why choose us?
Choosing our loaders, you will experience a range of excellent performance and advantages that will ensure that your engineering projects are completed efficiently, safely and economically. Here are a few key reasons to choose our loaders:
1.Powerful load capacity:
Our loaders have excellent load capacity, large bucket volume, and sturdy structure, which can withstand heavier items. This strong load capacity will greatly improve your work efficiency and allow you to complete more engineering tasks in a shorter time.
2.Excellent operating performance:
Our loaders are flexible in design and have a small turning radius. They can move freely in a small working space, improving work flexibility and efficiency.
At the same time, the loaders are equipped with easy-to-operate control handles and responsive hydraulic systems, making operation simpler and more comfortable, reducing the labor intensity of operators.
3.High safety performance:
We attach great importance to the safety performance of loaders. The loaders are equipped with stable structures and reliable braking systems to ensure safety during operation.
In addition, we also provide a variety of safety warning devices, such as anti-dumping systems, reversing radars, etc., to reduce potential safety hazards and make your engineering projects safer and more reliable.
4.Easy maintenance:
Our loaders adopt modular design, most of the accessories are replaceable, and the maintenance cost is relatively low. This will reduce your operating costs and improve economic benefits.
At the same time, we also provide a complete after-sales service system to ensure that your loader is maintained and serviced in time during use.
5.Wide applicability:
Our loaders have a wide range of applicability. They can not only be used for earthwork, highway and transportation construction in the construction field, but also for mining, metallurgy, water conservancy and forestry industries. No matter what kind of engineering project you are facing, we can provide you with a suitable loader solution.
6.Economical and practical:
Our loaders have low purchase cost, long service life, easy maintenance and low maintenance cost. They are economical and practical equipment. Choosing our loaders will bring you a higher return on investment for your engineering projects.
In summary, choosing our loaders will bring you multiple advantages such as strong load capacity, excellent operating performance, high safety performance, convenient maintenance, wide applicability and economic practicality. We are convinced that our loaders will become a powerful assistant in your engineering projects, helping you to easily cope with various challenges.
About Us
We are a professional, efficient and reliable machinery manufacturing factory. We have won the trust and recognition of our customers with our strong technical strength, customized services, perfect quality management system, efficient production capacity, environmental protection concept and high-quality customer service. We will continue to be committed to providing customers with high-quality machinery and solutions to promote the development and progress of the industry.
FAQ Q1: How long is the Warranty for DAOJ product? A1: DAOJ provides 12 months or 1000 hours for the whole machine from on board time. Q2: How about the delivery time?
A2: Usually DAOJ producing time is 15- 40 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: What kind terms of payment can be accepted?
A3: :Normally we can work on T/T term or L/C term.
Q4: Can DAOJ provide customized products? OEM products or ODM products?
A4: Yes, DAOJcan provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special request.
Q5: Could we request our own color for the products?
A5: Yes, of course

---
