Mini Pleat Gel Seal HEPA Filter (H13, H14,) HEPA ULPA Filter

Product Description

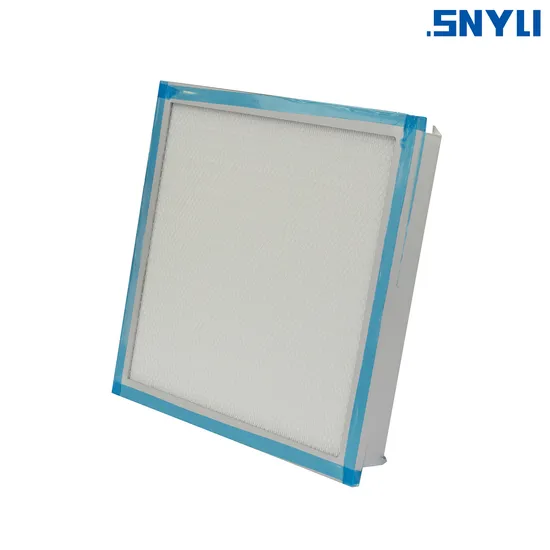

Mini Pleat Gel Seal Filter Liquid Sealed (H13, H14,) HEPA ULPA Filter Gel Seal HEPA Filter & ULPA Filter adopt the liquid sealed technology and is a kind of method better than the commonly used seal mechanical pressing device. The Gel Seal is easily to be installed. The seal is very reliable, so its terminal filtration effect is better than ordinary products. It can be used in advanced filtation of air conditioning and ventilation system in the central air conditioning and ventilation system, such as microelectrnics, semiconductor, pharmaceutical, chemical, food and other clean areas of ventilation system end.FeaturesFilter efficiency ranges from H13 to U15. Adopt computer-controlled automatic production line for manufacturing, the crest height of folding filter material can be regulated steplessly between 18~96 mm,width will reach 1240mm at the widest.Use special ultra-fine fiberglass paper as the filter media, good stability of filtration efficiency.Light in weight, compact in structure.Each ULPA/HEPA filter is tested according to EN1822:2009.COMMON DIMENSIONS

Mode Top sealing filter	Size(mm) Width*Length*Depth	Media guard	Rated air volume (m³/h)	Face velocity(m/s)	Rated Initial pressure loss
					H13	H14	U15
GPW370370105D	370*370*105	Two side media guard	500	1.2	200	210	249
GPW510510105D	510*510*105	Two side media guard	1000
GPW610610105D	610*610*105	Two side media guard	1500
GPW5101020105D	510*1020*105	Two side media guard	2000
Mode Top sealing filter	Size(mm) Width*Length*Depth	Media guard	Rated air volume (m³/h)	Face velocity(m/s)	Rated Initial pressure loss
					H13	H14	U15
GPW37037093B	370*370*93	Two side media guard	500	1.2	200	210	249
GPW51051093B	510*510*93	Two side media guard	1000
GPW61061093B	610*610*93	Two side media guard	1500
GPW510102093B	510*1020*93	Two side media guard	2000

StructuresTIPICAL APPLICATIONSFood and BeverageHealthcareMicroelectronicsPharmaceuticalADVANCED TESTING MACHINE
We have advanced HEPA filter testing machine to test the efficiency rate,pressure drop and non leakaging. We garrantee the products we shipped out were all good quality product.
Company introductionSNYLI Environmental Technology (Shandong) Co., Ltd. (Abbr.: SNYLI) is a professional service provider of air purification products integrating R&D, design, production and sales for more than 10 years, with the registered brand of "SNYLI". We are a Company with ISO 9001:2015 and CE Certificates, our primary and medium filters are tested according to ISO 16890 and EN 779:2002. Each HEPA filter and ULPA filter will be scanned to detect possible leaks and filter performance, such as initial pressure drop and filter efficiency.
Since established in 2010, SNYLI always takes deeply contributing innovation and development of the air purification industry as its original intention and mission. With a decade of technology accumulation, SNYLI is growing up to a company with advanced manufacturing equipment, production technology, testing technology.

---
