Product Details
Product Description
Product Description

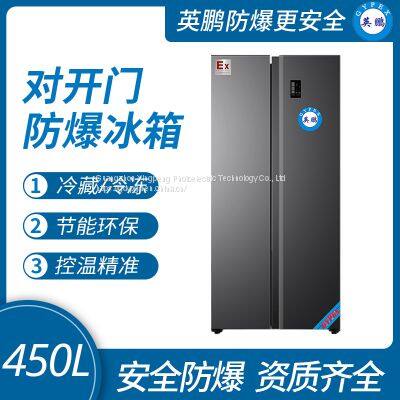

Opposite door explosion-proof refrigerator
Brand: Yingpeng
Model: BL-200SM450L
Total capacity: 450
Refrigeration room volume: 260L
Refrigeration chamber volume: 190L
Control method: computer
Button method: touch control
Category: opposite door opening
Refrigeration capacity (kg/12h): 6.0
Refrigeration temperature: 1 ℃~9 ℃
Freezing temperature: -15 ℃~-23 ℃
Compressor type: variable frequency
Noise dB (A): 38
Rated voltage/frequency: 220V/50Hz
Power consumption (kW · h/24h): 0.98
Boundary dimension (mm): 647 * 830 * 1775
Explosion proof grade: ExdibmbIICT4Gb
Main parameters of the new explosion-proof refrigerator door opening model
brand
Yingpeng
Yingpeng
Yingpeng
model
BL-200SM450L
BL-200SM500L
BL-200SM600L
Total capacity
450L
500L
600L
Refrigeration room volume
260L
310L
390L
Refrigeration chamber volume
190L
190L
210L
Button mode
Touch
Touch
Touch
category
Opposite door
Opposite door
Opposite door
Refrigeration capacity (kg/12h)
six
eight
six
Reefer-Temperature required
1℃~9℃
2℃~8℃
2℃~8℃
Freezing temperature
-15℃~-23℃
-15℃~-25℃
-16℃~-24℃
Compressor type
frequency conversion
Dual frequency conversion
Dual frequency conversion
Noise dB (A)
thirty-eight
thirty-eight
thirty-eight
Rated voltage/frequency
220V/50HZ
220V/50HZ
220V/50HZ
Power consumption (kw · h/24h)
zero point nine eight
zero point nine seven
zero point nine five
Overall dimensions
647*830*1775mm
910*646*1786mm
911*706*1780mm
Explosion proof level
ExdibmbIICT4Gb
ExdibmbIICT4Gb
ExdibmbIICT4Gb
Applicable scope:
It can be widely used in hazardous areas within Zone 1 (or Zone 2) of explosive gas mixtures with a temperature group of T4 in petroleum, chemical, aerospace, laboratory, storage and other departments. The BL series industrial grade integrated explosion-proof refrigerator is a Class IIC explosion-proof refrigeration system manufactured using integrated explosion-proof technology according to industrial environmental requirements.
Structural form of explosion-proof refrigerator.
Product Features
The explosion-proof technology adopted is safe and reliable.
The overall appearance of the machine is beautiful, and installation and transportation are convenient.
The design of the refrigerator is strictly produced according to standards, with stable and reliable quality
Applicable scope:
● Hazardous areas with explosive gas mixtures: Zone 2
Explosive gas mixture: IIA, IIB, IIC
Temperature group: T1-T4
● Indoor and outdoor
This refrigerator comes in multiple models, and if it is not standard, it can be customized according to customer requirements. Welcome to call and negotiate!
>>
