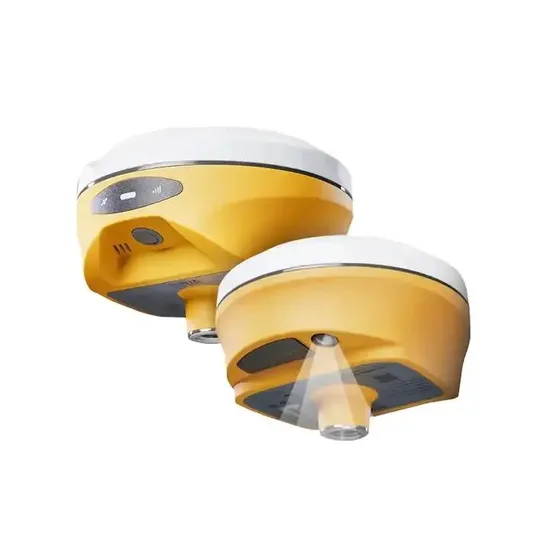

Gnss Rtk GPS 1408 Channels Hi Target V300 Land Surveying Equipment

Product Description

Product Description Futures:*The king of stakeout with the bottom camera, Fast and accurate.
*New generation GNSS SoC chip, 1408 channels
*Built-in new generation high precision IMU tilt survey 60°, Automatic initialization upon startup.
*Internal 2W UHF radio can receive and transmit.
*Eternal 35W radio can work 10-20km typically

Specifications

GNSS Configuration	Number of channels	1408
	BDS	B1I,B2I,B3I,B1C,B2a,B2b
	GPS	L1C/A,L1C,L2P(Y),L2C,L5
	GLONASS	L1,L2
	GALILEO	E1,E5a,E5b
	GALILEO	E1,E5a,E5b,E6*
	QZSS	L1,L2,L5,L6*
	IRNSS	L5*
	SBAS	L1,L2,L5
	L-BAND*
	Output format	ASCII: NMEA-0183, binary code
	Positioning output frequency	1Hz~20Hz
	Differential support	CMR,RTCM2.X,RTCM3.0,RTCM3.2
	Static format support	GNS, Rinex dual format static data
	Differential format	RTCM2.X, RTCM3.X
	Network mode	VRS, FKP, MAC; support NTRIP protocol
System Configuration	Operating system	Linux operating system
	Data storage	Built-in 16GB ROM, supports automatic cycle storage of static data
Precision and Reliability	RTK positioning accuracy	Plane: ±(8+1×10-6D) mm
		Elevation: ±(15+1×10-6D) mm
	Static positioning accuracy	Plane: ±(2.5+0.5×10-6D) mm
		Elevation: ±(5+0.5×10-6D) mm
	DGPS positioning accuracy	Plane accuracy: ±0.25m+1ppm;
		Elevation accuracy: ±0.50m+1ppm
	SBAS positioning accuracy	0.5m
	Tilt measurement accuracy	8mm+0.7mm/°tilt
	Visiual stakeout accuracy	1cm
	Initialization time	<10 seconds
	Initialization reliability	>99.99%
	RTK keep technology	YES
Camera	Function	Professional star-level night vision high-definition camera, super large viewing angle, support live-view stakeout
Communication	Cellular mobile	Built-in 4G network communication: TDD-LTE, FDD-LTE, WCDMA, TD-SCDMA, EDGE,GPRS,GSM
	I/O Interface	USB type C interface; SMA interface
	WiFi	802.11b/g access point and client mode, can provide WiFi hotspot service
	Bluetooth	Bluetooth® 2.4GHz, BT5.2
	NFC	Support NFC IGRS
	Power	1W/2W/5W adjustable
	RK/TK internal UHF radio	0.5W/1W/2W adjustable 410MHz~470MHz
		HI-TARGET,TRIMTALK450S,TRIMMARKIII, TRANSEOT,SOUTH,CHC,SATEL
		116 frequency bands adjustable
Sensor	Electronic Bubbles	Realize Smart Alignment
	Tilt measurement	IMU
User Interface	Panel	Single button
	Indicator light	Satellite lights, signal lights, power lights
Electrical physical properties	battery	High capacity lithium battery 6800mAh, working time is more than 16 hours
	Input voltage	USB 15W charger
	size	Φ158mm×98mm
	weight	≤1.2kg (including battery)
Environmental characteristics	Dust and water release	IP68
	Anti-fall	Resistance to natural drop of 2 meters
	Operating temperature	-40ºC~75ºC
	Storage temperature	-55ºC~+85ºC

Package
Company Profile Shanghai Apekstool was founded and based in Shanghai, specializing in the manufacturing and sales of Surveying equipment. We are dedicated to being a professional provider for survey equipment. Our goal is to provide the best products and excellent service to our customers all over the world.We have been involved in the geographic mapping industry for 10 years. We supply all products with reasonable prices and real-time support upon our own professional experience and high-quality supply chain. Like gnss rtk, total station, theodolite, auto level, rotary laser level, laser level and surveying accessories. We have sold to more than 156 countries and build our stable market.We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save so much time for communication. Our business is growing and we invite you to be part of the success.
Customer Case
FAQ We focus on Hi target, CHCNAV, EFIX, FOIF, STONEX, SOUTH , KOLIDA ,RUIDE, Unistrong, E-survey GNSS, Geomax , Sunway, Stonex, Hi target and Kolida total station. Including surveying accessories pole , tripod, tribrach, prism and leveling staff.
Q: Who are we?We are based in Shanghai, China and we are selling to Middle East, Africa, Southeast Asia, Eastern Asia, South America,North America, In almost every country we have customer representatives who can help us contact you.
Q: How do we process your order and give your warranty?We can have order by the third party of ****** to ensure your order and payment safety.We will process your order in our sales system, 1. to check machine appearance, 2. to register the machine permanent code, 3. to test machine fixed solution, 4. to pack and delivery. Our sales will follow up every step to the customer, giving you 100% assured experience and immersive online purchasing.We have 12 months quality warranty and 24 hours online technical support
Q: What can you buy from us?
We have known brands GNSS RTK system , total station , theodolite , auto level , rotary laser level, drones and surveying
accessories. All products are new and original. Different brands and different price ranges of products can meet the needs of all customers. We can offer one-stop services.
Q: What services can we offer?
Accepted currencies of payment: USD, EUR, JPY, CAD, AUD, HKD, GBP, RMB, CHF. Accepted payment methods: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash
Languages: English, Chinese, Spanish, Japanese,Portuguese,German, Arabic, French, Russian, Korean, Italian

---
