Product Details
Product Description
Product Description

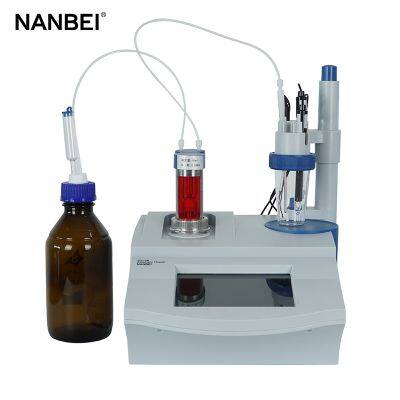

Automatic Karl FIscher Titrator ZDJ-5B
ZDJ-5B Potentiometric Titrator is a top integrated automatic laboratory analyzer to meet exacting titration demands. This titration is capable of all common titration types and offers high accuracy measurement and results data management.
Features
7” colorful touchscreen and smart guide system.
Titration methods, curves and results are displayed in detail.
1 extra burette driver can be installed (optional).
Replaceable burette with high-accuracy (10 ml or 20 ml selectable).
Intelligent operation system provides features including user management, method management, Electrode
management, titrant management, data management, etc.
Support the following titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence
point titration), SET (Preset Endpoint Titration) and MAT (manual titration).
pH calibration and measurement are supported.
Up to 100 user-defined methods and 10 user-defined shortcuts.
Auto calculation with pre-defined formula.
Store up to 200 titration data sets (GLP-compliant).
Data analysis feature helps user review, compare and recalculate result Data can be easily transferred to printer via
RS-232 communication interface.
Titrator can be controlled by computer via USB or RS-232 communication interface.
Automatic sampler is supported.
Technical data
Model
| ZDJ-5B
|
Burette
| Repeatability
| 0.20%
|
Accuracy
| 10ml Burette: ±0.025ml;20ml Burette: ±0.035ml
|
Resolution
| 10ml Burette: 1/20000;20ml Burette: 1/10000
|
Mechanical Unit
| Resolution
| 1/30000
|
Charging speed
| (55±10) s (Full burette)
|
Measuring Unit
| Range
| (-1999.0~1999.0) mv,( 57585007,0.00~14.00)pH
|
Resolutions
| 0.1mV, 0.01pH
|
Accuracy
| pH: ±0.01pH mv: ±0.03%FS
|
Fluctuation
| (±0.3mV±1bit) /3h
|
Temp. Compensation
| Range
| (-5.0~105.0) ℃
|
Resolutions
| 0.1 ℃
|
Accuracy
| ±0.3 ℃
|
General
| Power Supply
| AC (220±22) V; (50±1) Hz
|
Dimension (mm)& Weight (kg)
| 340*400*400; 10
|
>>
