Automatic Disposable Cup Forming Equipment

Product Description

YB-S100 High-Speed Paper Cup Making Machine by Ruian Yongbo Machinery Co., Ltd. is an innovative, eco-friendly, and efficient solution for fast, reliable, and sustainable cup production. This advanced machine offers high output, durability, and versatility, making it a top choice for modern cup manufacturing needs.
Yb-S100 Paper Cup Machine
Yb-S100 Paper Cup Machine Company: Ruian Yongbo Machinery Co., Ltd.
Quotation: FOB Ningbo with wooden case
Packing Type: Wooden base plate, damp proof plastic lining, fully-closed plate-box external
Delivery Time: 4-5 days after receiving the payment of deposit
Payment: 30% deposit by T/T in advance, 70% balance upon qualified acceptance
Leave Factory Testing: Equipment tested by both parties before leaving the factory. Test material provided by the buyer
Installation: 1 technician provided for installation and debugging. Buyer covers technician's expenses. Additional service charge of USD 100 per technician per day
Guarantee Period: 12 months after receiving the machine
Supplier Services: Adjustment of installation and commissioning, direct operation guidance for buyer's technical personnel
Buyer Responsibilities: Provide facilities for delivery, including foundation, power supply, water, compressed air pipe, and related projects

Cup Size Range
	Cup Bottom Diameter: Min 35mm~Max 75mm Cup Top Diameter : Min 45mm~Max 100mm Cup Height : Min 30mm~Max 115mm Bottom Knurling Depth: Min 4mm~Max 10mm (popular 5mm) Top Curling Rim Diameter : Popular about 2.5Φ~3Φ

High-Speed Paper Cup Making Machine
Ruian Yongbo Machinery Co., Ltd. presents an innovative and efficient High-Speed Paper Cup Making Machine designed for fast and sustainable cup production. This user-friendly equipment is ideal for custom and eco-friendly cup manufacturing, providing a reliable solution for businesses looking to streamline their production process.

Model	High Speed Simple Model Ultrasonic Paper Cup Machine YB-S100
Paper Cup Size	2 -12 OZ (Mould exchangeable, Max Cup Height: 115mm, Max Bottom width: 75mm)
Rated Speed	100-110pcs / min ( Speed affected by cup size , paper quality thickness )
Raw Material	One or Two side PE coated Paper ( Popular for Hot and Cold drink Cups )
Suitable paper weight	150-350gsm
Paper Source	50/60HZ,380V/220V
Total Power	5KW
Total Weight	2500KG
Pacl Size(L*W*H)	2200*1350*1900mm (machine size) 900*700*2100mm ( collecting table size)
Cup side Welding	Ultrasonic heater

Introducing the High-Speed Paper Cup Making Machine from Ruian Yongbo Machinery Co., Ltd. This innovative and eco-friendly equipment offers fast, efficient, and reliable cup production, perfect for sustainable packaging solutions.
High-Speed Paper Cup Making Machine
Control Panel Experience seamless control with the High-Speed Paper Cup Making Machine from Ruian Yongbo Machinery Co., Ltd. Ideal for efficient, reliable, and eco-friendly cup production.

Product Description
Control Panel: The control panel of our machine, manufactured by Ruian Yongbo Machinery Co., Ltd., features high-quality switches, a temperature controller, and a speed converter. This panel allows for easy operation of the machine.
Electric System: Our machine is equipped with a reliable electric system to ensure smooth and efficient performance.
Introducing the cutting-edge High-Speed Paper Cup Making Machine by Ruian Yongbo Machinery Co., Ltd. This innovative equipment is designed to be efficient, reliable, and eco-friendly, ensuring fast and sustainable cup production. Perfect for customizable packaging solutions, this machine is a game-changer in the industry.

Touch screen	1	Delta
Inverter	1	Delta
Step driver	1	Shenzhen Xinghuo
Temperature module	1	WK8H
PLC	1	Delta
Ultrasonic	1	Kejian
Switching Mode Power Supply	1	Mingwei
Solid state relay	6	Yangming
Air switch	5	CHNT
AC contactor	4	Schneid er
Photoelectric switch	8	Sick/Panasonic
Miniature relay	6	OMRON
Encoder	1	OMRON
PLC DC amplifier board	1	OMRON
Phase sequence protector	1	CHNT

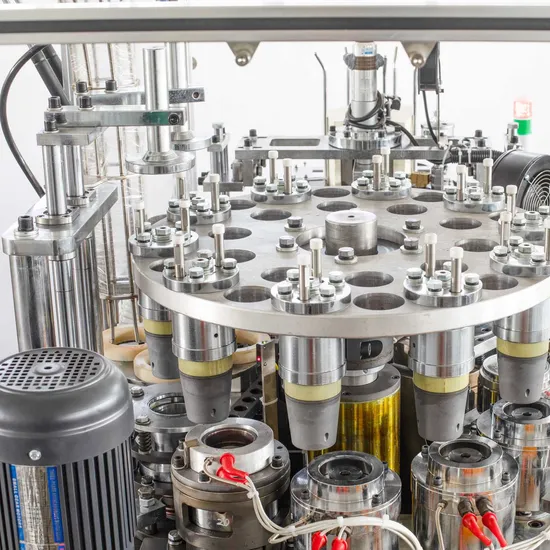

Main Turn Plate
Upgrade your production line with the High-Speed Paper Cup Making Machine from Ruian Yongbo Machinery Co., Ltd. This innovative and reliable equipment ensures efficient and sustainable cup manufacturing, offering high output and precision. Perfect for eco-friendly and customizable paper cup production.
Upgrade to the High-Speed Paper Cup Making Machine with 10 Cup molds for efficient and eco-friendly cup production.
Reference:
Company Name: Ruian Yongbo Machinery Co., Ltd.
Product Name: Automatic Disposable Cup Forming Equipment
Keywords: High Speed Cup Machine, Automatic Paper Cup Machine, Eco-Friendly Cup Machine, Efficient Cup Manufacturing
Introducing the High-Speed Paper Cup Making Machine by Ruian Yongbo Machinery Co., Ltd.
The newly designed High-Speed Paper Cup Making Machine from Ruian Yongbo Machinery Co., Ltd. boasts an upgraded bottom heating system that enhances sealing efficiency, resulting in superior cup quality.
High-Speed Paper Cup Making Machine The High-Speed Paper Cup Making Machine from Ruian Yongbo Machinery Co., Ltd. features a sturdy central shaft that ensures stable operation at high speeds, eliminating vibrations. This machine is ideal for efficient and reliable paper cup production.
New design: Steel plate ensures stable paper feeding for smoother operation. Features a moving cooling fan for efficient cooling.
Upgrade cooling efficiency with dual fans for rapid paper fan cooling and improved cup sealing. Features cam drive and automatic lubrication system.
Ruian Yongbo Machinery Co., Ltd. presents the upgraded High-Speed Paper Cup Making Machine. The new design includes an advanced bottom heating system that enhances sealing efficiency, resulting in superior cup quality.
Product name and quantity

One copper head electric heating rod	One 10 inch sliding wrench	Three small springs	Heating and preheating one main hot ring each	Two heating pipes
Bearing 5204 + knurled wheel one set	One set of Allen wrench	One set of external hexagon wrench 8-10 12-14 17-19 22-24	Six foot screws M18	One oil bottles
One Measuring pencil	One cross screwdriver	One Hammer	One machine wrench	One pieces of adhesive tape
Ring wrench 12-14, 17-19, 1 each	One pliers	Three skin aspirating (transparent)	Eight socket head screws, 6, 8, 10 and 12	Twelve nut flat pad
