Hc/HD/Ld High Consistency Cleaner for Paper Making Machine Slag Remover

Product Description

High Consistency Slag Remover Product Description Highly concentrated desludger is to use the different specific gravity of fiber and impurities to separate impurities. Slurry with a certain pressure from the feed tee tangent into the slag remover after high-speed rotation, due to the difference in centrifugal force, the heavy impurities are thrown to the wall, under the action of gravity, gradually run to the bottom of the cone, into the sedimentation tank. Fiber due to the smaller centrifugal force, gradually run to the center of the low-pressure area, after reaching the bottom of the vortex rise, and finally discharged by the mouth of the good pulp. The cone of the high-density deslimber has a certain taper, and the cone is longer, the radius of rotation of the pulp in the cone is gradually reduced to avoid the speed of the pulp flow in the process of rotation is reduced to ensure that the centrifugal force is strengthened, thus improving the purification efficiency of the paper material. The bottom balance of water pressure is slightly greater than the pulp pressure, so that the fiber can not enter the slag tank, only sand, metal particles, glue, plastic and other heavy impurities sink into the tank, reducing the loss of fiber.

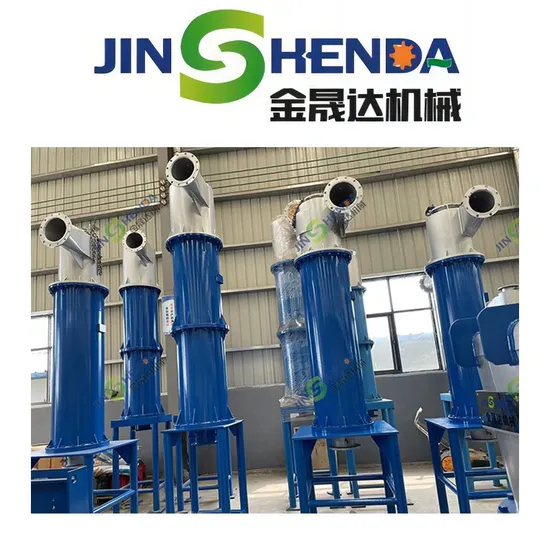

Detailed Photos
Product Parameters

Type	ZSC2A	ZSC3A	ZSC4A	ZSC5A	ZSC6A	ZSC7A
Flow rate(L/min)	800-1600	1500-2800	3000-4800	4500-5800	5800-7500	8000-12000
Consistency of inflow pulp(%)	2-5
Pressure of inflow pulp(Mpa)	0.2-0.35
Tapping mode	Automation manual

Spare part
Work shop
Company Profile The company has always been market-oriented, specializing in the development of pulp crushingequipment, slag removal equipment, screening equipment, pulp grinding equipment, waste paper plasticpackaging machine and other complete sets of pulp and environmental protection equipment. The company coversan area of more than 10000 square meters, with a construction area of 8000 square meters, and more than 200employees. It has excellent CNC machining equipment and advanced product testing and inspection instruments.It has strong technical force and annual production capacity of more than 8000 tons.
The company has more than 30 provinces, cities and autonomous regions, and is exported to Egypt,Vietnam, India, Indonesia, Iran, Malaysia, Russia and other countries and regions, and is highly praised andtrusted by domestic and foreign users.
Travel far from you, pursuit endless, Jinsheng Da machinery will continue to work hard, to serve theindustry Monument and forward.

After Sales Service Before Purchase: 1.Help customers find the right product by professional technology and business consultation 2.Provide plans of the machines installation freely3.Make customized products according to the clients requirements 4.Online for 24 hours After Purchase: 1.Fast and saft delivery 2.Assist our clients to bulid the equipment3.Train the first-line operators on site 4.Regularly visit clients to solve production problems5.Online for 24 hour

---
