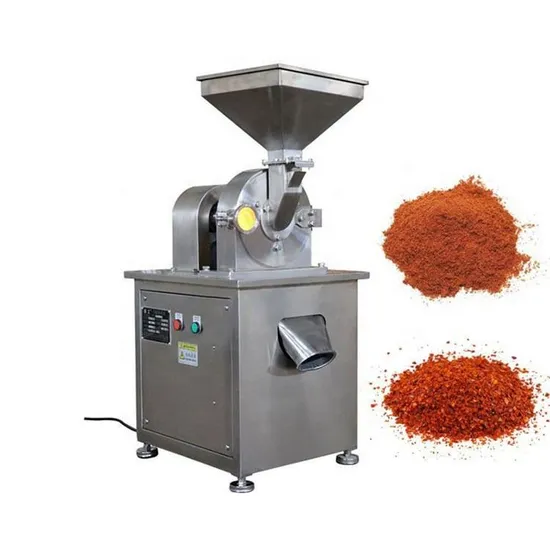

Corn and Soybean Crusher Mobile Crushing Station Feed Crusher Ultra-Fine Universal Crusher Fine Powder Powdering Machine

Product Description

Corn and soybean crusher mobile crushing station feed crusher ultra-fine universal crusher fine powder powdering machine
This machine is a Multifunctional Super fine powder grinder .It is widely used in pharmaceutics,chemical and foodstuff,etc. It can be used for making sugar powder , salt powder and crystal material. Spice industry like chili , pepper , pimento,coriander,cumin , cinnamon , cardamom , Star anise, celery seed , , ginger , Licorice ,etc Grains like rice , chaff , corn , Sweet potato bran , cocoa bean,coffee ,etc Chemical like resin,plastic .......
Product Description
This machine utilizes the high--speed relative motion between the moving and regular tooth set, which makes the material crushed through concussion, rub and crush between the materials. The structure of machine is simple, firm and operating steadily and the result of crushing is well, no dust nuisance. The crushed material is discharged directly from mainframe. The different sizes of the granule are gained through replacing different pore sizes of sieve. In addition, this machine is made of the whole stainless steel, surface of the inside of the machine is smooth, which changes the phenomenon of inboard wall coarse and accumulating of powder in the past. It meets national standard even more to make medicines, food, chemical industry, etc, and meet the requirement of GMP.
Specification

item	value
Output (kg/h)	20-150
Feeding Size (mm)	<6
Output Size (mesh)	10-120
Power (kW)	4
Range of Spindle Speed(r.p.m)	4500
Material	SUS304, Other
Application	Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Condition	New
Type	Grinder
Place of Origin	China
Brand Name	shenzhou
Voltage	220v/380v
Dimension(L*W*H)	550*600*1250 mm
Certification	CE
Weight (KG)	200KG
Warranty	1 Year
	Video technical support, Online support
Key Selling Points	High Productivity
After Warranty Service	Online support
Applicable Industries	Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Other
Local Service Location	None
Showroom Location	None
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided

Advantages 1 Material,usually all material use stainless steel 304,if you want stainless steel 316,we can make for you. 2 Automatic operating :just press button Easy to clean,usually use water cooling and air compressor is ok . 3 Final powder size range from 12 mesh -120 mesh,we have screener like 12 mesh,20mesh,30mesh,40mesh,60mesh,80mesh,100mesh,120 mesh for your choose. 4 Machine has water cooling system to reduce working temperature,so can working long hours.
Technical Paramers

Reyes Universal Crusher
Model	Res-20b	Res-30b	Res-40b	Res-60b
Capacity (kg/h)	20-150	30-300	40-800	60-1200
Speed of principal axis (r/min)	4500	3800	3400	2600
Size of input granules (mm)	<6	<10	<12	<15
Fineness of products (Mesh)	10-120	10-120	10-120	10-120
Power (kw)	4	7.5	11	22
Weight (kg)	200	320	550	960
Overall Size(L×W×H) mm	550*600*1250	750*600*1450	900*750*1650	1000*950*1800

Details
1.Install a limit switch for protection 2.Install water cooling device 3.Current display 4.Start up button 5.Stop button 6.Power Indicator 7.Emergency stop Output size of the particles can be obtained by changing different sieve, Also type of knife can be selected according to different materials.

---
