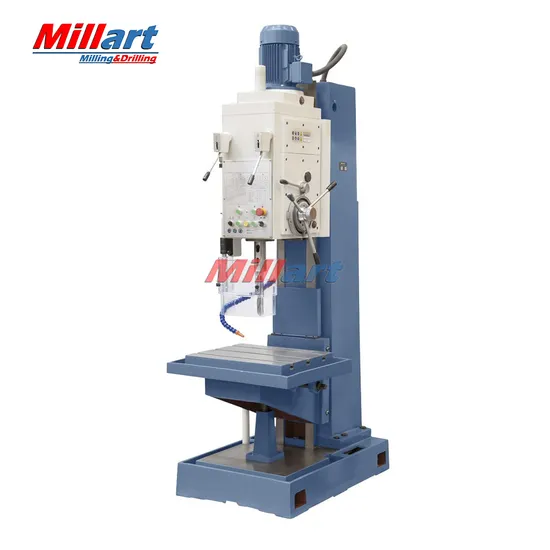

Heavy Duty Drilling Machine Z5140b (Vertical Drilling Machine Price)

Product Description

Heavy Duty Drilling Machine Z5140B (Vertical Drilling Machine Price )
Feature:
Square-column vertical drilling machine is a universal general-purpose machine. Its used for counter-sinking, spot-facing drilling, tapping, boring, reaming, etc.
The machine has catch the function of tap-automatically reversing device which is suitable for tapping of blind and determined holes.
The machine has high efficiency, high accuracy, low noise, wide range of variable speed, centralized controls good looking appearance, easy maintenance and operation.
Model Z5140B-1 with cross table, can move on X and Y axis.
Technical Parameter :

Model	Z5140B	Z5140B-1
Max drilling dia (mm)	40	40
Max tapping dia (mm)	M30	M30
Spindle torque (Nm)	350	350
Spindle taper (mm)	MT4	MT4
Spindle travel (mm)	250	250
Spindle box travel by manual (mm)	200	200
Spindle speed steps (mm)	12	12
Spindle speed range (mm)	31.5-1400	31.5-1400
Spindle feed steps (mm)	9	9
Table size spindle feed range (mm)	0.056-1.80	0.056-1.80
Table size (mm)	560x480	800x320
Table longitudinal and cross travel (mm)	/	440/300
Table vertical travel (mm)	300	300
Max distance from spindle to table (mm)	750	550
Distance from spindle to column(mm)	335	335
Main motor power (kw)	3	3
Overall size (mm)	1090x905x2465	1300x1200x2465
Net Weight (kg)	1250	1350

---
