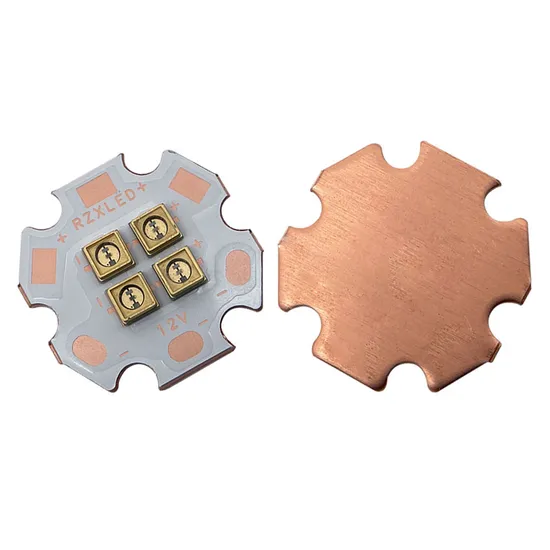

LED 12V 2W 5W 12W 253.7nm 222nm 260nm 275nm 290nm 315nm with 20mm Star PCB UVC Light Boards

Product Description

Specifications:
1. Shapes: square
2. Wavelength(nm): 250-260NM/260-270NM/270-280NM/280-290NM/290-300NM/300-315NM
3. DC forward voltage (VF): 12V
4. Lens : 120degree Quartz lens
5. Life Span: 10,000 Hours
6. With RoHS & CE Approved
7. Beam angle:120 degree
8.Forward Current: 2w 2*40ma; 4w 2*150ma, 12w 2*500ma
9.PCB size:20*20*1.5mm
10.power:2W 40-72mw /4W 80-120mw /12W 150-280mw
(UVC 250-315NM)Applications :
1. Surface sterilization: medical appliances, maternal and infant supplies, smart toilet, refrigerator,tableware cabinet, fresh-keeping box, smart trash can, Thermos Cup, escalator, hand and ticketmachine buttons and other high-frequency public contact surfaces;2. Still Water Sterilization: Drinking Water tank,humidifier, ice machine;3.Mobile Water Sterilization: Mobile Water S
terilization Module, Direct Drinking Water Machine;4. Air Sterilization: Air Purifier, air conditioning;5.Industrial Applications: Medical phototherapy,fluorescence spectrum detection, optical sensors,biological analysis/detection, anti-counterfeit detection, etc.
3535(250-315NW 10-14V) Reflow temperature 170-230 ºC

PCB Dimension	20*20*1.5mm
Power Consumption	2W /4W /12W
Peak Wavelength	250-260NM/260-270NM/270-280NM/280-290NM/290-300NM/300-315NM
Radiant Flux	2W 40-72mw /4W 80-120mw /12W 150-280mw
Spectrum Half Width	10NW
Forward Current	2w 2*40ma; 4w 2*150ma, 12w 2*500ma
Application	Water sterilization, Medical Equipment,fluorescence spectrum detection, optical sensors.

---
