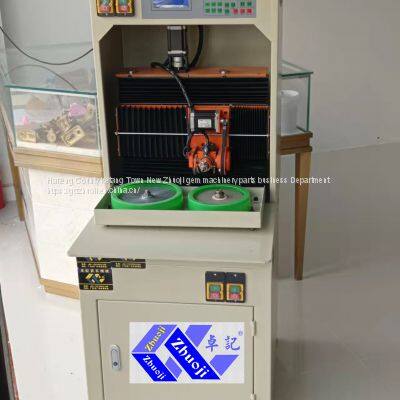

Zhuoji Zhuoji Brand Automatic Angle Grinding Machine for Gemstone Face CNC Computer Control
Serial number 810501338 model XX - 5 M
The automatic Angle machine can polish the plane carving of the mixed stone egg-shaped ring surface. The number of layers can be processed is seven, and each layer has 16 plates.
Principle: install 5 stepper motors, 5 drivers, 5 sensors.A mechanical arm for positioning and repositioning by transverse pull;
Operation process:
Mode selection: there are 10 types of processing data built in for storing and exporting. Enter according to the window prompt, and the selected mode number is the current processing or programming storage number.
2. The number of layers and plates: namely, the number of layers of processed stones (with 7-10 layers) and the number of processed plates (with 16 plates in each layer), such as circular plane 8-8-16 programming.The number of layers is input as 3, namely 3 layers. The first layer has 8 layers, then 1=8; the second layer has 8 layers, then 2=8; the third layer has 16 layers, then 3=16.
3. Angle and Angle setting: their layers, each plate manipulator stepper motor Angle numerical programming (note: each step motor running a circular number representation to 3200, namely, their Numbers for 1 0.1125 degrees, the following when programming. The numerical based on). : after entering the layers menu, Angle Angle was on behalf of the board, 1-15 said for 2 to 16
Four: machinist pitch Angle setting: the Angle of the manipulator and cd-rom programming each level, according to the processing of shape, after entering the layers menu, : according to A, B key to choose ze layer, layer number, press * confirm programming according to A, B key rapid adjustment, according to the C, D: key fine-tuning, specific to the specific shape processing parts. 5. Playing sand height Settings: namely the mechanical processing of their height, after entering the menu, press AB choose ze layer number, press the * key to confirm programming layer number, press B A quick adjustment, C, D key fine-tuning, concrete generally will be subject to stone plate. But the specific situation will be subject to specific shape processing parts.
Suitable for: corundum, spinel, ruby, turquoise, olivine, topaz/topaz, sapphire, tourmaline/tourmaline, garnet, agate, amber, tiger eye, zircon, glass
Shape: round, oval, square, rectangle, triangle, pear shape, heart shape, water drop shape, horse eye shape, plum shape, star, leaf shape, axe shape, solid beads, solid water drop, solid triangle square ring face, egg ring face, pear ring face, etc
Accessories: diamond forming disc/polishing disc/polishing powder
Technical parameters:
/Voltage: /AC220V
Motor Power /Power: 250W
Natural speed: 2800r/min
The biggest plate size:8
Quantity offlat: the number of milled layers is seven, with 16 surfaces in each layer
Dimension: length 560mm× width 800mm× height 1390mm
Guangzhou Panyu Zhuoji gem Machinery Co., Ltd., founded in 2003, is a gem machinery supplier integrating R & D, production and sales. The company has introduced a large number of professional production tools and advanced processes from home and abroad. After more than 10 years of time and careful design and manufacturing, it has now developed into an enterprise with a mature production, processing, sales and after-sales service system.
The continuous improvement of product quality has made our products highly praised by the industry. The products are sold all over the country, Europe, America, Southeast Asia and other countries and regions. At the same time, it has become an important supplier of many gem processing bases, and is deeply recognized by users at home and abroad.
Welcome customers to visit and talk about the core culture of the company
1. Enterprise vision: take the revitalization of national industry as its own responsibility and build a well-known brand.
2. Enterprise mission: always provide users with perfect gem machinery
3. Enterprise values: achieve customers, create value and add luster to the world.
4. Enterprise tenet: first class management, first-class technology, first-class products and first-class services. Business scope:
Jewelry and gem processing equipment series
1. Automatic processing equipment for gem cutting / cutting sheet
2. Automatic CNC processing equipment / tools for colored gemstones.
3. Automatic CNC processing equipment / tools for gem beads
4. Jade jade bracelet processing equipment / tools
5. Special shaped and heteromorphic processing equipment / tools
6. Gem glue injection and glue filling optimization processing equipment / tools
7. Vibrating barrel polishing processing equipment / abrasive
8. Drilling equipment / tools
The company supplies automatic multi slice opener; Automatic stretching machine; Automatic granulation; Bead grinder; Large chamfering machine; Bead threading machine; Glue filling machine; Film opener; Setting machine; Polishing machine; Fast bead machine; Cutting machine; Gem tools; Gem machinery; Gem polishing powder, bracelet machine, ultrasonic drilling machine, gem cutting machine, single chip oil cutting machine, pelletizer, universal machine, jade carving machine, jade carving horizontal machine, hanging machine, gong machine, embryo punching machine, angle machine, disc machine, bead grinder, beading machine, vortex bead machine, round bead machine, vibrating barrel polishing machine, drum polishing machine, jade drilling machine, shell grinding machine, carving mold, gem drilling machine, gem cutting piece, carving tools, copper caliper, bracelet machine Jade sleeve machine, screen piece, ball machine, gem viscose, grinding machine, ball processing machine, carving steel mold, Millennium machine, concave angle machine, wax meter jade carving tools, carving needle, carving diamond needle, electroplating grinding head, diamond sand needle, jade carving tools, diamond tools, glass drill bits, gem polishing powder, imported diamond polishing powder, hand polishing powder, machine polishing powder, cold light powder, etc
>>
