2025 Bcmc High Efficiency Multi-Blade Stone Block Cutting Marble and Granite Bridge Machine for Stone Cutting Machinery High Efficiency

Product Description

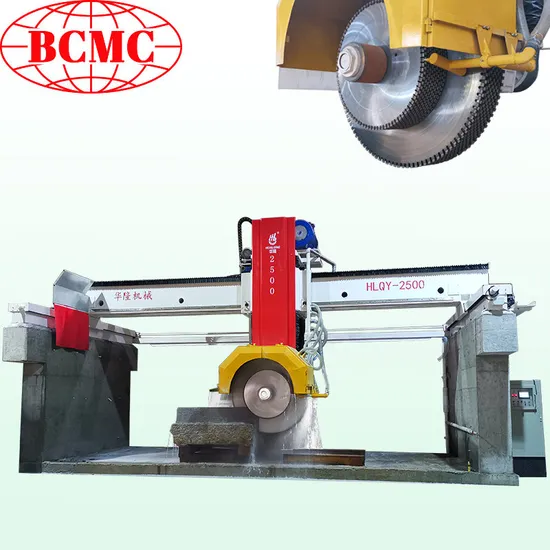

BCMC Machinery HLQY-2500 Multi blade Stone Cutting Machine is a classic and practical bridge saws for cutting block into slabs, thin or thick which adopts Siemens PLC control system, Hiwin linear guide with oil bath. Up to 18 pieces of thin saw blades can be mounted. It's popular in China and aboard for its high efficiency, good stability and long life service.
Main Features: Adopt with 4 pillars for spindle fluent moving. Ensure that the lifting process is stable and steady. Huge more than 14.5 ton cross beam. Keep the machine works stable and steady. Using linear guide on the cross beam and carling. Ensure the high precise of cutting and prolong the machine lifetime. Adopt quality Siemens PLC control system and branded electronic components for stable and performance automation working.
Parameters:

Plant No.		HLQY-1600	HLQY-2300/2500	HLQY-3000
Overall Dimensions (L x W x H)(mm)	mm	6500*5000*4000	7800*5000*4500	7800*5000*4500
Overall weight (kg)/Gross weight(kg)	kg	10000	13000/14000	14000/15500
Control system		Siemens PLC	Siemens PLC	Siemens PLC
Guide rail/Linear guide		Hiwin	Hiwin	Hiwin
Quantity of blade	pc	max 32
Assembly saw blade diameter	mm	1700	2300/2500	3000
Cross-beam length	mm	6000	7600/8300	8300/9300
Maximum processing length	mm	3500	3500	3500
Cutting width of type A	mm	2000	2000	2000
Maximum lifting stroke	mm	800	1350	1350
Power of main motor	kw	55(4P)	55(4P)	55(6P)
Power of verticaltal motor	kw	1.1	1.1	1.1
Total power/Gross power(kw)	kw	62.3	62.3	62.3
The pump power	kw	54	4	4
Power of stroke motor	kw	2.2	2.2	2.2

Detailed Information:
Name: 6 big strong pilllars
Use: sliding guide for spindle Covered by fabric for preventing pollution
Brand: Hiwin Linear Guide
Original: Taiwan, China
Famous products, top quality use on crossbeam and carling for good performance.
Original: China Circle Blade Up to 18 pieces of blade can be hanged for efficient production of thin slabs.
Brand: Siemens Electronic Control System
Original: Germany Famous product, equipped for good stability and high automation performance.
Application:
* Block cutting
* Stone slicing
* Factory large stone processing

---
