Construction Mixers Sy310c-6W Concrete Truck Mixer 10m3 Concrete Machines with Optional Panoramic Monitoring

Product Description

Product Description

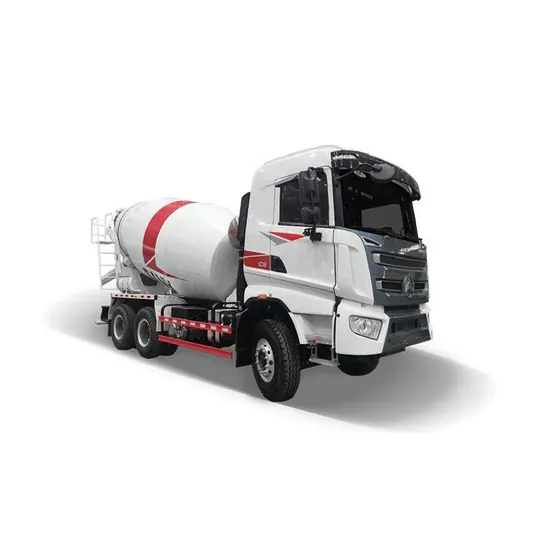

10m3 Concrete Mixer Truck SY310C-6W
Improved Braking· By making full use of exhaust valve braking technology, braking distance has been reduced by 15% and brake lining wear has decreased by 50%. brand uses a high-volume air compressor, high quality piping, and new sealing technology that shortens air build-up time and brake response time.Energy-saving Technology· The engine dual power mode, coupled with the unique intelligent transmission's power matching technology makes a 10% fuel savings.Low Deck Technology· The frame is made of high-strength special steel plates, improving reliability and safety. It uses Brand's original subframe-free structure combined with the hollow front and back-end structure design, reducing the center of gravity by 100mm and making the vehicle lighter.Leading Edges Steering Technology· The large displacement power steering pump reduces operator effort by 40%. Optimizing chassis geometry and front axle steering angle reduces the minimum turning radius by 15%.Anti-buildup Technology· The three-section blade provides an efficient discharge angle.· The flushing device, an innovative front taper, and a ball-crown connecting structure are installed at the rear taper, in order to clear stagnant aggregate from the dead space and to prevent aggregate from piling up at the front and rear tapers. Due to this, the residual rate at the discharge port declines to 0.4%.Smart Operating Technology· Each truck is equipped with a GPS system, which boasts five functions including vehicle monitoring, record/playback, alarm reporting, fleet management, statistics and analysis. With this information you can keep abreast of the mixer truck's location, maintenance items, discharge, etc.Maintenance Tips· Dashboard-mounted monitor provides maintenance alarms for the truck's key components such as engine, axle, and transmission in order to facilitate maintenance schedule.
Product Parameters

Manufacturing year	2025
Working hours	0-2000h
Warranty	1 year
After sale service	Free spare parts
Curb Weight(kg)	13500
GVW(kg)	37500
Dimension (L×H×W)(mm)	9600×2500×3990
Wheel Base(mm)	3720+1350
Min. Ground Clearance(mm)	≥24
Min. Turning Diameter(m)	18
Fuel Consumption(L/100km)	≤42
Bore(mm)×Stroke(mm)	φ126×130
Displacement(L)	9.726
Rated Power/Rev Speed(kW/rpm)	250/2200
Max. Torque/Rev Speed(N.m/rpm)	1350/1200~1600
Emissions	Euro II
Capacity(m³)	10
Feeding Speed(m³/min)	≥8
Discharge Speed(m³/min)	≥5
Discharge Residual Rate	≤0.5%
Slump(mm)	50~210
Water Tank Capacity(L)	400

Detailed Photos
