Factory Produces PPGI Color Coated and Pre-Painted Steel Coil Products, Colored Metal Roofing Sheet Building Materials

Product Description

Product Parameters

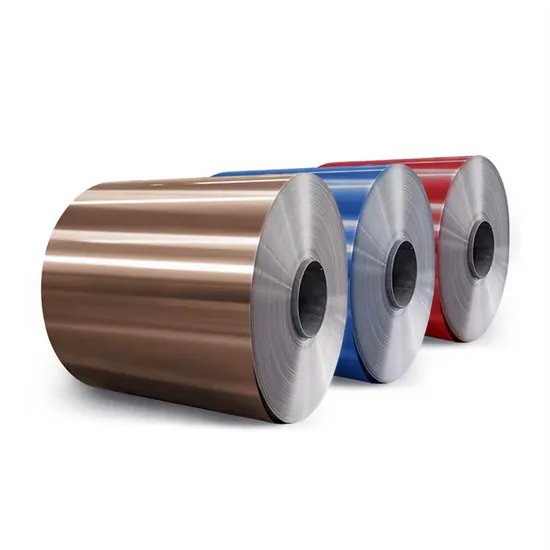

Prepainted Galvanized / Galvalume Steel Coil (PPGI/PPGL COIL)
Thickness	0.11mm-2.0mm
Width	20-1250mm, 600mm-1250mm
Alu-Zinc Coating	AZ30-150g/m2
Hardness	Full Hard OR Customize
Surface	Matt,High gloss,Color with two sides,Wrinkle,Wooden color,Marble
Length	Customers' Requirement
Coil Weight	3-5 Tons or as requirment
Grade	SGCC Dx51d Dx52d G350-G550
Tolerance	±10%
Color	RAL color
Processing Service	Bending, Cutting,roofing tiles
Item	ISO9001 Standard
Standard	JIS,GB,DIN,BS,ASTM
Packing	1.standard seaworthy package : waterproof paper/iron sheet/steel strip/steel pallet
	2.According to customers' requirements
Price Term	CIF CFR FOB EX-WORK
Delivery Time	Normally within 25 working days
Coated	PE Coated Or SMP HDP PVDF Coated

1. Substrate:
- PPGI: The substrate is typically galvanized steel, which is coated with zinc for corrosion resistance.
- PPGL: The substrate is galvalume steel, consisting of zinc and aluminum for improved corrosion resistance.
2. Coating Layers:
- Both PPGI and PPGL undergo a coating process where the steel coil is cleaned, treated, primed if necessary, and then coated with paint or resin.
- The coating layers include primer, topcoat, and sometimes a backcoat, depending on the application requirements.
- Various resins or paints are used for the topcoat, providing different colors, textures, and functionalities (such as UV resistance or heat reflectivity).
Our Advantages
1. Corrosion Resistance:
- The zinc or galvalume substrate combined with the protective paint coating provides excellent corrosion resistance, extending the lifespan of the coated steel.
2. Aesthetic Flexibility:
- Available in a wide range of colors, textures, and gloss levels, PPGI and PPGL offer design flexibility to meet diverse aesthetic preferences and architectural requirements.
3. Durability:
- The paint or resin coating enhances the durability of the steel by protecting it from scratches, abrasion, and environmental factors like UV radiation and moisture.
4. Environmental Benefits:
- As pre-painted steel coils can be fabricated off-site and are highly recyclable, they contribute to sustainable building practices and reduce on-site waste.
Product Applications
1. Construction:
- PPGI and PPGL coils are widely used in the construction industry for roofing, siding, and architectural panels.
- They offer a wide range of colors and finishes, enhancing building aesthetics while providing long-lasting protection against the elements.
2. Appliances:
- In the manufacturing of appliances such as refrigerators, washing machines, and air conditioners, pre-painted steel coils are used for their scratch-resistant and easy-to-clean surfaces.
3. Automotive:
- Automotive components benefit from PPGI and PPGL due to their corrosion resistance and ability to maintain color and gloss over time.
- They are used in the production of automotive panels, chassis parts, and trim.
4. Others:
- Additional applications include manufacturing of furniture, storage tanks, and electrical cabinets where both aesthetic appeal and durability are crucial.
Packaging & Shipping
After Sales Service
