Mill Machine Zx6350c X Axis Auto Feed Drilling Milling Machine

Product Description

Mill Machine ZX6350C X axis Auto Feed Drilling Milling Machine

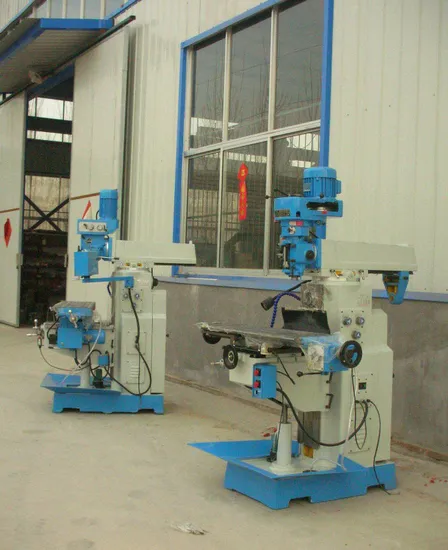

Product picture:
Milling Drilling Machine performance characteristics:
1.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
2.Work Table Made by HT200-250 High Strength Cast Iron
3. With the horizontal milling function
4.Plastic Guide Way Increase The Precision And Service Life
5.Three Axis can Fix (X/Y/Z) Automatically Feed .
Standard Accessories:
1.Milling chuck sets
2.Reducing sleeve 7:24ISO50/MS4 and 40/MS4
3.Hexagonal Spaner 5 and 10
4.Stay wrench S21-24 and S27-30
5.Horizontal milling cutter arbor 7:24 ISO50 27
6.Horizontal milling cutter arbor 40
7.Draw bar M24 (on the machine)and M16
8.Work lamp
9. Cooling systerm
10.Universal milling head XC63T4A
Optional Accessories:
1.X/Y power feed
2.Z axis lifting motor
3.three axis sino dro
4.QH200 flat vice
Milling Drilling Machine Technical specifications:

Specifications	Unit	ZX6350C
Table size	mm	1120x280
T Slot number/width/pitch	mm	5/14/50
Longitudinal travel	mm	630
Cross travel	mm	280
Vertical travel	mm	430
Vertical milling capacity	mm	32
Face milling capacity	mm	100
Drilling capacity	mm	50
Longitudinal feeds range	Mm/min	24-720
Cross feeds range	Mm/min	-
Vertical milling spindle travel	mm	120
Spindle nose to table surface	mm	140-570
Travel of movable arm	mm	360
Vertical milling spindle taper		MT4
Horizontal milling spindle taper		MT4
Vertical milling spindle speeds	R/min	115-1750 ,8 steps
Horizontal milling spindle speeds	R/min	32-1320 ,12 steps
Vertical milling motor	kw	1.5/0.85
Main motor	kw	2.0/2.4
Overall dimensions	mm	1400x1300x2100
Net weight	Kg	1300

Milling Drilling Machine Details pictures :
Milling Drilling Machine Package delivery:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
If any questions pls feel free to contact me
Contact information :
Edwin
Tel:+86 18663288651

---
