Telescopic gas tires for oil fields

Product Details

Product Description

Product Description
Telescopic gas tires for oil fields

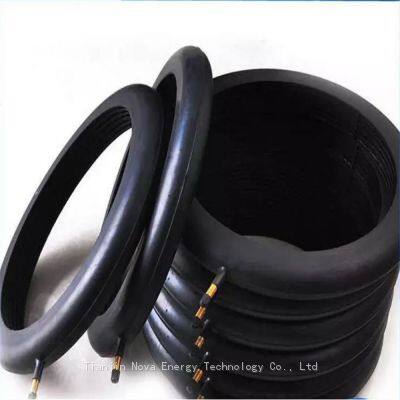

Pneumatic tire union is a widely used connection method for pipelines with low pressure, large diameter, large displacement, and frequent loading and unloading, especially suitable for connecting mud tanks in solid control systems in the petroleum industry. It consists of a steel shell and a pneumatic tire, which can be quickly installed and sealed by inflating the tire. After deflation, it can quickly recover, has strong adaptability, and is easy to maintain.
Working environment: The pneumatic tire can work in an environment ranging from -45 ℃ to 50 ℃, with a maximum sealing pressure of 0.4MPa.
Standard sizes: Common sizes include 4 '', 6 '', 8 '', 10 '', 12 '', 14 '', 16 '', 18/20 '', etc.
advantage:
Low requirements for installation alignment, able to achieve quick installation and sealing without alignment.
After the pneumatic tire is deflated, the pipeline can be extracted without the need for tools, with strong adaptability and simple maintenance.
Disadvantages: Although pneumatic tire unions have many advantages, they may require additional consideration and maintenance when used in extreme environments or high-pressure conditions.
Precautions for use and maintenance
During use, the sealing performance of the pneumatic tire should be regularly checked to ensure that there is no air leakage.
During maintenance, pay attention to checking whether the pneumatic tire is damaged or aged, and replace it in a timely manner to ensure safety.
When used at extreme temperatures, attention should be paid to the performance changes of the pneumatic tire union, and corresponding protective measures should be taken if necessary.

---
