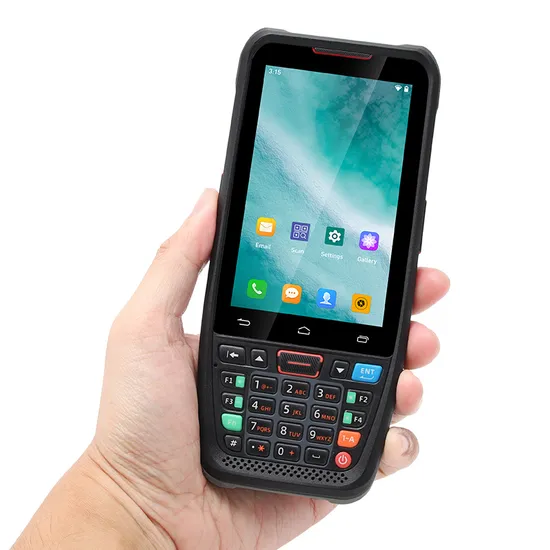

Product DescriptionUNIWA HS002 Thin Portable 2D Laser Barcode QR Code Scanner Android Handheld PDA
1) 4.0 Inch Capacitive Touch Screen2) Android 10.03) 2GB RAM+16GB ROM4) Removable 4000mAh Battery5) Built-in 2D Scanner Module6) Fast Keypad Input7) 1D/NFC/CPU Optional
| Model No. | UNIWA HS002 |
| Type | Handheld |
| Dimension | 162*71.5*17mm |
| Weight | <300g |
| Languages | Simplified/Traditional Chinese, English, Spanish, Portuguese, French, Deutsch, Polish, Dutch, Korean, Japanese, Malaysian, etc. |
| SCREEN |
| Screen | 4.0 inch TN capacitive touch screen, 800*480px |
| HARDWARE |
| Operation system | Android 10.0 |
| CPU | MT6739 Cortex A53 Quad core 64 bit, 1.3GHz |
| RAM | 2GB RAM |
| ROM | 16GB ROM, support TF card extension up to 128GB maximally |
| Battery | Removable 3.8V/4500mAh polymer battery |
| Sensors | Gravity sensor, light sensor, proximity sensor, vibrator |
| NETWORK |
| Band | 2G: GSM 850/900/1800/1900MHz |
| 3G: WCDMA 850/900/1900/2100MHz |
| 4G: FDD-LTE:B1/B2/B3/B5/B7/B8/B20; TDD-LTE:B38/B41 |
| COMMS |
| WIFI | Support 2.4GHz/5GHz dual band wifi, IEEE802 a/b/g/n/ac |
| BT | V4.0+HS, Transmission distance 5-10m |
| GNSS | Support GPS/A-GPS |
| I/O INTERFACES |
| Nano SIM Card | x2 (Nano SIM+PSAM optional) |
| TF card | x1 |
| USB Type-C | x1, support OTG function |
| POGO Pin | x1 |
| Speaker | Mono |
| Mic | Suppport |
| Receiver | Suppport |
| Keypad | 25 soft and hard rubber buttons, left button x1, right button x1 |
| MULTIMEDIA |
| Camera | Front camera: 5MP |
| Rear camera: 8MP HD AF camera with flashlight, Anti-shake, Macro shooting |
| OTHER FUNCTIONS |
| 2D Modules | Mindeo E483/ EM6601, Honeywell N6603/ N3603 |
| 2D Symbologies | PDF417, MicroPDF417, GS1 Composite, Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Hanxin Code, etc. |
| RELIABILITY |
| Waterproof | IP66 |
| Drop-proof | 6 sides can withstand 1.2m height, 30 impacts on concrete floor |
| Rolling test | 500*0.5m rolling for 6 sides |
| Temperature range | Operating: -20ºC - 55ºC Storage: -40ºC - 70ºC |
| Humidity range | 5%RH--95%RH (no condensation) |
| Options |
| NFC | Optional |
| 1D | Optional |
| CPU | MT6761/MT6762 Optional |
| ACCESSORIES |
| Adapter | x1 |
| Data cable | x1 |
| Protective film | x1 |
| Instruction manual | x1 |
