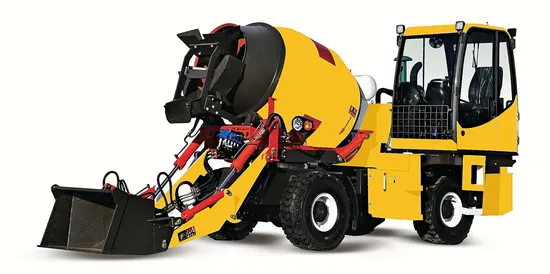

Dumper Mixer with Auto Betonniere SD1500m

Product Description

SELF LOADING CONCRETE MIXER TRUCK
4X4 SELF-LOADING MOBILE CONCRETE MIXER
Introducing the Dumper Mixer Auto Betonniere SD1500m by Jurong Topall Machinery Co., Ltd. This mobile concrete mixer is perfect for any construction project. With a 1 cubic meter drum, it offers a 12-month warranty and comes in a nude pack for easy transportation. Get your hands on this reliable and efficient self-loading concrete mixer today!
Introducing the Dumper Mixer Auto Betonniere SD1500m by Jurong Topall Machinery Co., Ltd. This mobile concrete mixer is perfect for all your construction needs. With a drum capacity of 1500L, it can handle large quantities of cement, sand, and gravel.
The SD1000m features a powerful diesel engine, with options including the NC485 or CA498. Its 4*4 traction and 4-speed transmission (both forward and reverse) ensure smooth and efficient operation on any terrain.
Equipped with a hydraulic discharge system, hydraulic steering, hydraulic dismantling, and hydraulic brakes, this mixer offers convenience and ease of use. The four 10-16.5 wheels provide stability and maneuverability.
With a container load of three units in a 1*40'HQ, the SD1500m is a cost-effective choice for your construction projects. It comes with a 140L auto benne for easy loading of cement, sand, and gravel into the drum.
Trust Jurong Topall Machinery Co., Ltd. for reliable and high-quality construction equipment. Get the Dumper Mixer Auto Betonniere SD1500m today and experience efficient concrete mixing like never before!
Keywords: Mobile Concrete Mixer, Carmix Concrete Mixer, Benford Concrete Mixer, Concrete Mixer Truck, Concrete Mixer Machine, Diesel Concrete Mixer, Self Loading Concrete Mixer, Transit Mixer
Mobile Self-Loading Dumper Mixer Model SD1000M/SD1500M/SD2000M/SD3000M/SD4000M/SD5000M
Characters:
1. It is designed for hilly and narrow site, where big vehicle not accessible,
2. It save cost of labors, and also can give a good mixing concrete as batch plant,
3. The simple structure is easy to operate and maintenance, also cost less too.
Technical Parsmeters

Model	SD1000M	SD1500M	SD2000M
Effective capacity per batch	1m3	1.5m3	2m5
Output Per hour	5~7m3	8-11m3	10-14m3
Drive type	Articular frame,4X4 driving	Articular frame,4X4 driving	Articular frame,4X4 driving
Max speed	25 km/h	25~30 km/h	25~30 km/h
Grade ability	36%	30%	30%
Mini turning radius	≤5.5 m	≤7 m	≤7 m
Mini ground clearance	≥248mm	≥248mm	≥248mm
Tire front wheel/ Rear wheel	10-16.5/10-16.5	20.5-16/ 20.5-16	16/70-R22.5/ 16/70-R22.5
Clutch system	Constant-contact, single-disc ,dry clutch	All Hydraulic System	All Hydraulic System
Gearbox	Four forward +four rear	2 High and 2 Low +2 Rear	2 High and 2 Low +2 Rear
Tipping system	Hydraulic tipping and 180 angle discharge	Hydraulic tipping and 180 angle discharge	Hydraulic tipping and 180 angle discharge
Steering	Hydraulic steering	Hydraulic steering	Hydraulic steering
Diesel engine	40hp Xinchai NC485 diesel engine	99hp Yuchai 4100 diesel engine	106hp Yuchai 4102 diesel engine
Weight	2450kg	6200kg	7500kg
Bucket Capacity	0.25m3	0.4m3	0.5m3
Overall size	3620×1800×2500mm	5100×2350×2850mm	5300×2350×2950mm
Load Container Plan	1×40HQ /2 Unit	1×40HQ /2Unit	1×40HQ /2 Unit

---
