Bohai Large Span Roll Forming Machine / Construction Machine / Rolling Machine CE Approved

Product Description

Product Description
Yingkou Bohai Machinery Equipment Manufacture Co., Ltd. is a professional manufacture of Roll Forming Machine with rich experience.
We can produce many kinds of different models equipments: single axle, double axles, three axles, floor type, whole hydraulic type etc. PLC, servo motor and generator provide software support.
We can instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied. Clients who purchase our equipments can create largest profit space.
Product Parameters

Production Name	Bohai Arch Roof Roll Forming Machine
Size	8900mmX2230mmX2300mm(With Single Axle 4 Tires)
Total Weight	About 12 Ton
Thickness of Bending Leaf	10mm Thickness, Processed by CNC
Cutting Blade	12CrMov Material, Heat Treatment
Cutting Type	Mechanical Cutting
Forming Type	Roll-Formed and Length-Set Cutting
Power	Total Motor Power: 18.9KW Roll Forming Motor Power: 7.5KW Cutting Power: 4.0KW Bending Power: 3.0KW+1.1KWx2
Seaming Power	1.1KW+1.1KW
Roller Material	45# High-Quality Steel, Quenched HRC 55~65, Hard Chrome Plating
Shaft Material	45# High-Quality Steel, Galvanized
Stand of Molding	13+1 Steps
Feeding Width	1000mm
Effective Width	680mm
Using Rate	68%
Thickness Coil	0.5-1.6mm
Speed	Forming Part : 15m/min Bending Part: 13m/min Seaming Part: 16m/min
Suitable Span	6~38m
De-Coiler	Inner-Diameter of Coil : 450mm ~ 650mm, Max Width of Coil : 1000mm ~ 1020mm Load : 12Ton

Related Production

Model	Feeding Width	Effective Width	Thickness Coil	Largest Span
BH-600-300	600mm	300mm	0.5-1.6mm	30
BH-600-305	600mm	305mm	0.5-1.6mm	28
BH-914-400	914mm	400mm	0.5-1.6mm	40
BH-914-610	914mm	610mm	0.5-1.6mm	38
BH-914-650	914mm	650mm	0.5-1.6mm	26
BH-914-700	914mm	700mm	0.5-1.6mm	22
BH-914-750	914mm	750mm	0.5-1.6mm	14
BH-1000-610	1000mm	610mm	0.5-1.6mm	42
BH-1000-680	1000mm	680mm	0.5-1.6mm	38
BH-1000-700	1000mm	700mm	0.5-1.6mm	30
BH-1000-750	1000mm	750mm	0.5-1.6mm	24
BH-1000-800	1000mm	800mm	0.5-1.6mm	18
BH-1200-800	1200mm	800mm	0.5-1.6mm	40
BH-1220-800	1220mm	800mm	0.5-1.6mm	42
BH-1250-800	1250mm	800mm	0.5-1.6mm	45

The rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium. The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer. The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument. Our machine can be divided in to two cutting ways, one is hydraulic, and the other is mechanical. Controlling system include manual and automatic. It can be also designed according to your requirement. Our helping hand wheel and the counter are used in adjustment of the bending of arch sheet, which makes the operation simpler. Our hoisting tool is light and handy; the weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting.

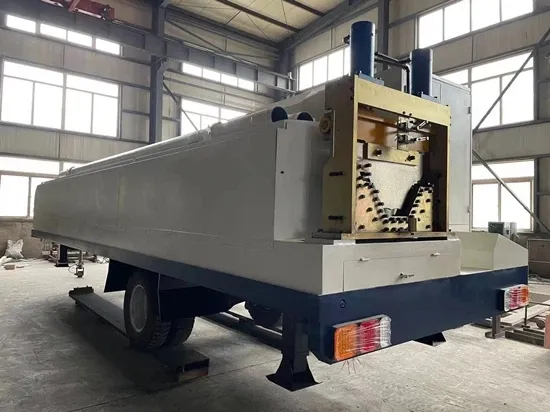

Machine Photos
Projects all over the world
Certifications
Company Profile
Yingkou Bohai Machinery Equipment Manufacture CO. Ltd is located in China. We mainly product kinds of Roll Forming machines and Steel Drum Production Line.
We have been a manufacture and supplier for over 20 years. During these years, we have gained our own patents and brand. Now we have high- qualified technicians and well-trained workers. All machines are inspected strictly before loading to customers.
Packaging & Shipping
1. Main Machine Body and Decoiler is loaded naked(Tighten to container with steel wire rope.
2. Spare parts and tools used in projects are packed in tooling boxes.
There is still some space in the container besides the machine & Spare Parts, we can load the raw materials such as Colored Steel Sheet Coils or Galvanized steel Coils or other small machines the customers need. In this way, it could make full use of the container space and save the customers transportation fee.
Delivery Time: 30 days after we received the prepayment.
FAQ
(1)Are you manufacture factory or a trading company?
We have been a manufacture and supplier for more than 20 years. We also have the professional Export Department to provide best service.
(2)What's the guaranty of your machines?And how to make sure quality of your machines?
Guaranty of machines is 13 months after B/L (Except Electricity Parts). We will send pictures to customers after the machines equipment and customers are always welcomed to come to our factory for inspection.
(3)Can your engineer be available overseas?
We provide service on line and on site(Optional). It depends on the customers requirements.
(4)what's your payment term?
Generally is the T/T Deposit, 30% advanced payment and the balance should be paid before delivery.

---
