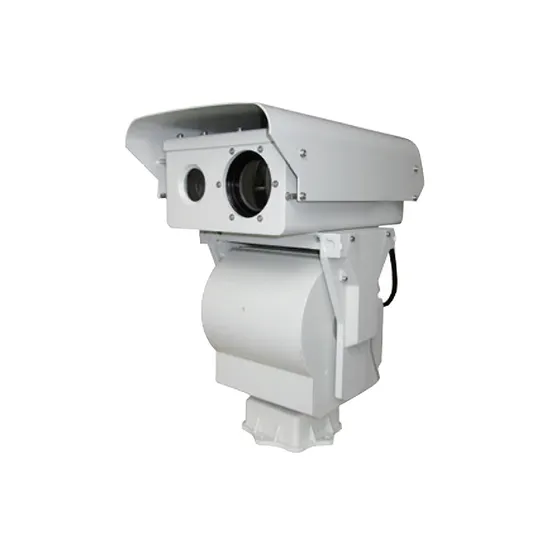

| Model | CQ-TTVC45C19-20100 |
Effective Distance
(DRI) | Vehicle (2.3*2.3m) | Detection: 16.4km; Recognition: 4.2km; Identification: 2.1km |
| Human (1.8*0.6m) | Detection: 5.8km; Recognition: 3.0km; Identification: 1.6km |
| Fire Detection | 13km (7km for 2*2m fire) |
| IVS Range | 5.8km for Vehicle; 2.1km for Human |
| Thermal Sensor | Sensor | 5th generation uncooled FPA sensor |
| Effective Pixels | 384x288 50Hz |
| Pixel Size | 17μm |
| NETD | ≤45mK |
| Spectral Range | 7.5 ~ 14μm, LWIR |
| Thermal Lens | Focal length | 38-190mm 5X |
| FOV (640*512) | 10.6°x8°~2.1°x1.6° |
| Angular radian | 0.45~0.09mrad |
| Digital Zoom | 1~8X Continuously zoom (step:0.1) |
| Visible Camera | Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
| Resolution | 1920(H)x1080(V) |
| Frame Rate | 32Kbps~16Mbps,60Hz |
| Min. Illumination | 0.05Lux(Color), 0.01Lux(B/W) |
| SD Card | Support |
| Visible Lens | Lens size | 12~1000mm 83X |
| Image Stabilization | Support |
| Defog | Support |
| Focus Control | Manual/Auto |
| Digital Zoom | 16X |
| Image | Image Stabilization | Support Electronic Image Stabilization |
| Enhance | Stable operational temperature without TEC, starting time less than 4 seconds |
| SDE | Support SDE digital image processing |
| Pseudo Color | 16 pseudo color and B/W, B/W inverse, Support image fusion |
| AGC | Support |
| Ranging Ruler | Support |
| PIP | Support picture in picture |
| Bad Point Correction | Support |
| PTZ | Patrol | 16*patrol route, 256 Preset for each route |
| Patrol Mode | Preset position/pattern scanning/cruise scanning/vertical scanning/frame scanning/panoramic scanning/apple peel scanning/horizontal sector scanning |
| Rotation | Pan: 0~360°, tilt: -45~+45° |
| Speed | Pan: 0.01~30°/S, Tilt: 0.01~15°/S |
| Preset | 3000 |
| Enhance | Fan/Wiper/Heater attached |
| Interface | Ethernet | RS-485 (PELCO D protocol, baud rate 2400bps), RS-232 (option), RJ45 |
| Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF |
| Video Output | PAL/NTSC |
| Power | AC12V / DC24V |
| Compression | H.265 / H.264 / MJPEG |
| Environmental | Operate Temp | -25ºC~+55ºC(-40ºC optional) |
| Storage Temp | -35ºC~+75ºC |
| Humidity | <90% |
| Ingress Protect | IP66 |
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug |
| Anti-fog/salty | PH 6.5~7.2 |
| Lightning Proof | 6000V |
| Power | 120W (Peak) |
