Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Certification
CE, ISO9001: 2000
Standard Bucket Capacity
1.0m³
Engine Model
6btaa5.9-C150-II
Rated Power
112kw @1950rpm
Bucket Digging Force
152.5 kN
Maximum Travel Speed
5.7 Km/H
Transport Package
Nude Packing
Specification
9540*2990*3140mm
Production Capacity
5000 Pieces/Year
Product Description

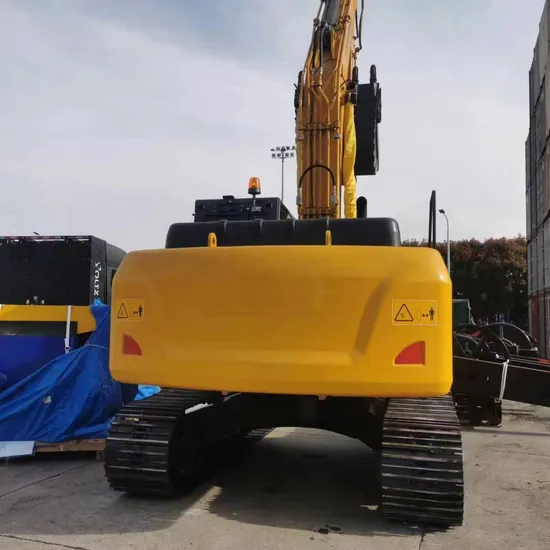

Hot Sales 22Ton Crawler Excavator CLG922E
Product Description
* Unmatched performance driven by the Cum---mins Engine enhances torque output with more power and breakout force at lower engine speeds.
* Options for auxiliary hydraulic piping include bidirectional variable high flow line, an additional line for rotating attachments and also a single acting line. The quick coupler further ensures you get the most out of your machine by easily switching between a wide range of attachments to suit any application.
* Ergonomically designed cab for LiuGong E series excavator, with great visibility, expansive room, new multi-function LCD monitor, automatic air conditioner, large storage space, provide most comfortable working environment.
* Hydraulic request signals detect activity, decreasing and increasing engine speed as required. Power is supplied only as needed, achieving optimum fuel efficiency.
*Outstanding stability and durability come from an X-type reinforced frame and the long track beam and crawler system
Product Parameters
Operating weight
| 22000 kg
|
Engine power
| 112 kW (150 hp) @ 1950 rpm
|
Bucket capacity
| 0.9 / 0.95 / 1.0 / 1.1 / 1.2 m³
|
Maximum travel speed (High)
| 5.7 km/h
|
Maximum travel speed (Low)
| 3.3 km/h
|
Maximum swing speed
| 12.5 rpm
|
Arm breakout force
| 97 kN
|
Arm breakout force Power boost
| 105 kN
|
Bucket breakout force
| 140 kN
|
Bucket breakout force Power boost
| 152.5 kN
|
Shipping length
| 9540 mm
|
Shipping width
| 2990 mm
|
Shipping height
| 3140 mm
|
Track shoe width (std)
| 600 mm
|
Boom
| 5710 mm
|
Arm
| 2915 mm
|
Digging reach
| 9870 mm
|
Digging reach on ground
| 9685 mm
|
Digging depth
| 6562 mm
|
Vertical wall digging depth
| 5080 mm
|
Cutting height
| 9945 mm
|
Dumping height
| 7170 mm
|
Minimum front swing radius
| 3090 mm
|
Model
| Cum-mins 6BTAA5.9-C150-II
|
Emission
| EPA Tier 2 / EU Stage II
|
System maximum flow
| 2×224 L/min (2x59 gal/min)
|
System pressure
| 34.3 MPa
|
