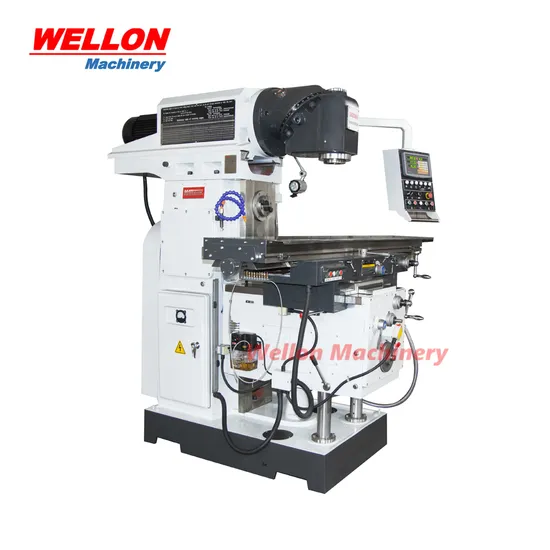

Swivel Head Milling Machine Um1480/Universal Milling Machine Made in China

US$13,000.00

1-2 Pieces

US$9,999.00

3+ Pieces

Basic Info.

Model NO.

UM1480

Object

Tool

Structure

Bed type

Milling Cutter Type

Angle Milling Cutter

Milling Cutter Structure

Indexable Type

Precision

High Precision

Certification

GS, CE, ISO 9001

Condition

New

Table Size

2000X400

T-Slots(No./Width/Pitch)

3/18/90

Main Motor Power

7.5

Table Travel a Axis

1600

Feeding Motor

3kw

Weight

4100

Z Axis Travel

600

Y Axis Travel

495

Transport Package

Wooden

Specification

CE ISO900 rohs

Trademark

WELLON

Origin

Tengzhou China

Production Capacity

50 PCS/Month

Product Description

Detailed Photos

Two joint type mill head can swivel 360degree, it is avaliable multi direction point of milling.
X Y Z axis speed changed in fire-pin type, gear drive, auto feed.
Product Parameters

Model	UM1480
Spindle Taper	ISO 50
Distance from Spindle to Column surface	0-1000mm
Distance from Spindle Nose to Table Surface	50-650mm
Distance from Horizontal Spindle Center to Table	440mm
Spindle Speed Range	12 steps 50-1520rpm(Vertical) 12 steps 60-1850rpm(Horizontal)
Table Size	2000×400mm
Worktable Swivel Angle	50°
Table Travel X axis	1600mm
Cross Y axis	495mm
Vertical Z axis	600mm
X,Y axis Feeding	8 steps 22.4-560mm/min
Z axis Feeding	8 steps 11.2-280mm/min
T-slots of Table	3
Width	18mm
Distance	90mm
Main Motor	Vertical 7.5kw Horizontal 5.5kw
Feeding Motor	3kw
Coolant Pump Motor	90w
Overall Dimensions	2300×2300×2270mm
Net Weight	4100kg

Standard Accessories :

Mill chuck set

Draw bar

Mill arbors

Worktable swivel ±50 degree

Reduction sleeve

Coolant device

Coolant tray

Automatic central lubrication

Foundation bolts

Tools

Optional Accessories :

3-Axis DRO

Ball leadscrew on X,Y axis

Machine vice 160mm

Machine vice 200mm

Universal Dividing Head F11-160A

Rotary table TSL300

58 pcs Clamping kits

Spindle protection

Worktable protection

Slotting head

Schneider electrical components
