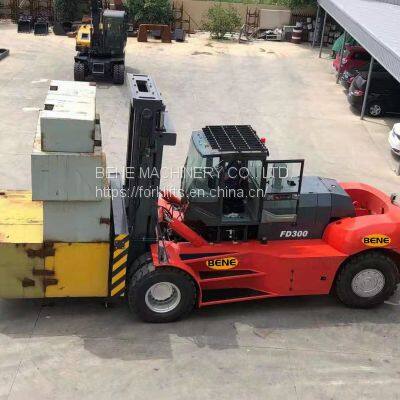

Chinese 30ton big forklift VS30 ton lift truck Kalmar 30 ton container forklift truck
1.Adopt CUMMINS diesel engine, which features sufficient power, large torque, strong overload capacity, reliable work, and low oil consumption
2.High strength solid steel gantry fork fixed with fork with regulator.
3.Heavy duty torque converter installed for smooth rotation of power within the internal combustion engine, to rotating-driven loads. Torque converter supersedes the mechanical clutch, effectively allowing the load to be configured from the power source.
4.Fitted with handy steer with maximum freedom, provides steering conveniences.
5.An ideal operation friendly in the engineering and industrial sectors.
6.Steering axle: adopt full-hydraulic steering gear with transverse cylinder, which helps ensure flexible steering and high reliability
7.The gearbox and torque converter are of reliable quality and stable performance.
8.The transmission mode is hydraulic transmission (flexible transmission), being stable and convenient to operate.
9.Brake system is famous brand product, with reliable brake performance.
| Item | Specification | Unit |
|
| General | 1 | Model |
| FD300 |
| 2 | Power Type/model |
| Diesel |
| 3 | Rated Capacity | Kg | 30000 |
| 4 | Load Center | mm | 1250 |
| Dimensions | 5 | Lift Height | mm | 4000 |
| 6 | Fork Size(LxWxT) | mm | 2400×300×120 |
| 7 | Fork Spread(outside)(Min./Max) | mm | 980/2500 |
| 8 | Mast Tilt Angle(F/R) | deg | 6°/12° |
| 9 | Fork Overhang | mm | 1220 |
| 10 |
| Length without forks | mm | 7150 |
| 11 | Overall Width | mm | 3370 |
| 12 | Mast Lowered Height | mm | 4200 |
| 13 | Overhead Guard Height | mm | 3690 |
| 14 | Outer turning Radius |
| mm | 6950 |
| Performance | 15 | Speed(Unload/Load) | Travel | km/h | 30/26 |
| 16 | Lifting | mm/s | 300 |
| 17 | Max.gradeability(Load) | % | 20 |
| 18 | Max.drawbar pull(Load) | KN | 200 |
| 19 | service Weight | kg | 40000 |
| Wheels&Tires | 20 | Tire | Front |
| 4×16.00-25-32PR |
| 21 | Rear |
| 2×16.00-25-32PR |
| 22 | Tread | Front | mm | 2430 |
| 23 | Rear | mm | 2240 |
| 24 | Wheelbase | mm | 5000 |
| 25 | Ground Clearance(Under mast) | mm | 360 |
| Power & Transmission | 26 | Battery | Voltage/Capacity(5HR) | VA/h | 2X12/150 |
| 27 | Engine | Model |
| WP10G240 |
| 28 | Manufacture |
| WEICHAI |
| 29 | Rated Output | Kw | 178 |
| 30 | Rated Torque | N.m | 786 |
| 31 | No.Of Cyinder |
| 6 |
| 32 | Bore*stroke | mm | 114/135 |
| 33 | Displacement | L | 8.3 |
| 34 | Transmission | Type |
| Fluid Torque Converter |
| 35 | StageFWD/RVS |
| 2/1 |
| 36 | Operating Pressute | Mpa | 21 |
FAQ
1.What's the Certificate do you have?
BENE workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate. EPA approval can be available if needed.
2. Can you customize and design as the clients' requirement?
BENE will try our best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the first.
4. Can you produce the products labeled with the client's brand?
Yes, we do!
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery, it can be negotible according to the actual situation.
6. Delivery date:
If clients need normal products, we will deliver the products within 30 days. If clients need customerized products, the delivery date depend on the requirements.
>>
