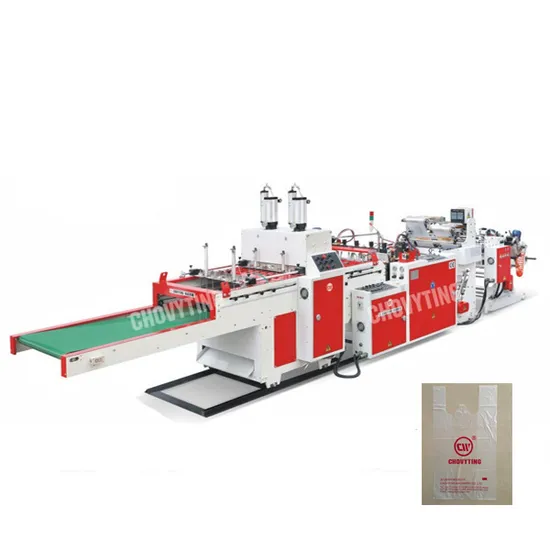

Chovyting Fully Automatic High Super Speed Plastic Bag Making Machine T-Shirt Shopping Bag Machine

Product Description

The newly designed super high-speed T-shirt bag making machine, is specially designed for making T-shirt bags. It has two lines or three lines high-speed producing and the best technology of servo motor driving. (No double photocells tracking design for three lines. )
Features:
1. Active type of unwinding tension, fully automatic control.
2. Two lines or three lines temperature controll independently.
3. Turnover sealing knife, humanized design.
4. The whole set of bags has design of swaying, no paste between two bags mouth.
5. Fully automatic tacking of whole set and the smooth & nail-stack design.
Optional:
1. Single sheet heat slitting and edge folding device.
2. Bag folding device.
Specification :

Type	CW-300V2	CW-400V2
Length of bag-making	300-600mm	300-600mm
Width of bag-making	300mm	400mm
Width of jumbo roll	350mm(Heat slitting is 600mm)	450mm(Heat slitting is 800mm)
Set film dragging speed	100m/min	100m/min
Machine Speed	250pcs/min*2lines	250pcs/min*2lines
Total power	about 9.5KW	about 11.5kw
Weight of machine	2000KG	2500KG

Sample bag
Detailed Photos
Unwinder
1.unwinder adopts air cylinder automatic load design. ,max.diameter of the unwinder is 700mm.
2. Adopts AC frequency motor driving constant tension control,feeding speed is according to the producing speed.
3. Unwinding shaft adopts heavy-chain air shaft.
4. Unwinder part has the EPC and automatic tension control.
5. Automatic stop design when rolls film finish or damage.Sealing and cutting knife device
1. Sealing knife with 90 degree "turnover" device ,which easy to clean the knife ,which is better to keep the maintenance easy
2. The whole set of bags has design of swaying ,no paste between two bags mouth (ITALY DESIGN)
3. Fully automatic tacking of whole set and levelling stack design Automatic collect table
1)Collect table adopts automatic collecting bag feeding.
2)With gripper device,which is controlled by a AC inverter motor 1.5kw,which makes bag much more tidy. Company Profile
FAQ
1) Is your company a factory or a trading company?
We are a factory.
2) Where is your factory? How can i visit your company?
Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for
train). All our clients from home and abroad are warmly welcomed to visit us.
3) What is the suitable material for your machines?
PE, OPP, laminated material ,etc are suitable for our machines
4) What kind of machine do you have ?
We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing
machine, etc...
5) How many years of your factory?
Our company is established since 1999.
6) What about the development of your company?
Titled as "National Key and New Products" and Pass identification of the provincial new product, honored as" Patent Model
Enterprise" as well.
7) How many exhibition do you take part in?
We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT,
UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc...
8) How many agent do your company have?
We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc...
9) How many workers of your company?
More than 150 workers.

---
