PVC/PP/PE/PA Insulation Winding Wire for Sumbersible Pump Motors

Product Description

Product Description Poly Wrapped Submersible Winding Wire
Another name: water-resistant winding wire
Production standard: JB/T4014.3

Product Parameters

submersible motor winding wire specifications reference sheet
Wire Size mm	Nominal cross section mm2	Outer diameter mm	D.C. resistance Ω/m
0.47	0.1734	0.95	0.0999
0.51	0.2042	0.95	0.0854
0.55	0.2375	1.02	0.07356
0.57	0.255	1.1	0.0687
0.59	0.2733	1.11	0.0631
0.6	0.2826	1.11	0.06222
0.62	0.3018	1.15	0.05536
0.64	0.3215	1.15	0.043
0.67	0.3524	1.19	0.04979
0.69	0.3737	1.19	0.047
0.71	0.3957	1.25	0.04442
0.74	0.4299	1.25	0.03987
0.77	0.4654	1.25	0.0375
0.8	0.5024	1.3	0.035
0.85	0.5672	1.37	0.03104
0.9	0.6359	1.67	0.02765
0.93	0.6789	1.67	0.02602
0.96	0.7235	1.72	0.02484
1	0.785	1.8	0.0224
1.04	0.8491	1.84	0.02071
1.06	0.882	1.85	0.01995
1.08	0.9156	1.85	0.01896
1.12	0.9847	1.92	0.01785
1.16	1.0563	1.95	0.01678
1.18	1.093	2	0.01609
1.2	1.1304	2	0.0152
1.25	1.2266	2.05	0.01435
1.3	1.3267	2.1	0.01325
1.35	1.4307	2.15	0.01235
1.4	1.5386	2.2	0.01143
1.45	1.6505	2.25	0.01078
1.5	1.7663	2.3	0.00996
1.56	1.9104	2.35	0.00926
1.6	2.0096	2.4	0.00875
1.65	2.1372	2.45	0.00825
1.7	2.2687	2.55	0.00775
1.8	2.5434	2.65	0.00691
1.85	2.6867	2.7	0.00674
1.9	2.8339	2.86	0.0062
2	3.14	3	0.0056
2.12	3.5281	3.2	0.00498
2.2	3.7994	3.4	0.00462
2.24	3.9388	3.42	0.00446
2.36	4.3721	3.55	0.00402
2.4	4.5216	3.6	0.00381
2.5	4.9063	3.7	0.00358
2.6	5.3066	3.8	0.0033
2.65	5.5127	3.85	0.00319
2.7	5.7227	3.9	0.00302
2.8	6.1544	4	0.00286
2.85	6.3762	4.05	0.0027
2.9	6.6019	4.1	0,00267
3	7.065	4.2	0.00249
3.15	7.7892	4.45	0.00226
3.2	8.0384	4.5	0.00226
3.3	8.5487	4.6	0.00186
3.35	8.8097	4.65	0.00178
3.4	9.0746	4.7	0.00167
3.5	9.6163	4.9	0.00148
3.55	9.893	4.95	0.00139
3.6	10.1736	5	0.00131
7/0.80	3.5168	3.62	0.0051
7/0.85	3.9701	3.77	0.00443
7/0.90	4.451	3.93	0.00403
7/0.96	5.0642	4.07	0.00345
7/1.00	4.495	4.22	0.00326
7/1.04	5.9434	4.35	0.00296
7/1.06	6.1742	4.4	0.00279
7/1.12	6.8929	4.58	0.0026
19/0.69	7.101	4.73	0.00247
19/0.72	7.7319	4.88	0.00238
19/0.75	8.3897	5.05	0.00214
19/0.80	9.5456	5.27	0.00188
19/0.85	10.7761	5.52	0.00166
19/0.90	12.0811	5.78	0.00148
19/0.96	13.7457	6.08	0.00133
19/1.00	14.915	6.4	0.0012
19/1.04	16.1321	6.55	0.00107
19/1.06	16.7585	6.58	0.00101
19/1.12	18.7094	6.95	0.00092
19/1.18	20.7676	7.5	0.00082

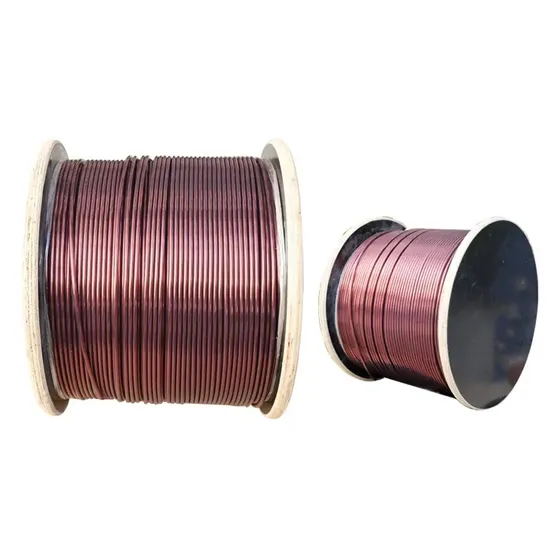

Detailed Photos
We specialize in the production and development of Poly Wrapped submersible winding wire/water-resistant winding wires, high-voltage submersible pump winding wires, FEP winding wires, water-resistant wires, submersible wires, submersible wires, etc.
After more than 20 years of exploration and struggle, the production varieties cover various requirements for submersible pumps, such as water resistance, oil resistance, Products of various environments such as high temperature resistance, high pressure resistance, acid, alkali and salt resistance, and have obtained a number of national patents.
Production scope:
Submersible motor winding wires:
Polyethylene insulated nylon sheath (PE PA),
High-strength polypropylene insulation (PP),
Cross-linked polyethylene insulated nylon sheath (PE2 PA),
Submersible motor windings Wire (YF),
High temperature resistant winding wire (150ºC),
High voltage resistant winding wire (kV, 10,000V),
Special winding wire for variable frequency submersible motors and special winding wire for acid, alkali and salt resistance
Product specifications:
Single core Φ0.3mm-Φ6.0mm,
Multi-stranded, 7/0.5mm-7/1.5mm, 19/0.5mm-19/1.5mm, fully meet the needs of customers for product types.
Poly Wrapped Submersible Winding Wire Usage:
high-power or special requirements submersible pump winding wire. winding wire of the water-filled submersible pump and the electrical wire working under similar conditions with the AC rated voltage Uo/U of 450V/750V. It is suitable for long-term work in water, the PH value of the water should be 6.5-8.5, the water pressure should not exceed 1MPa, and the long-term working temperature should not exceed 80°C.
Temperature resistance level:
The winding wires of submersible motors are designed to operate under general temperature conditions, and the required temperature resistance level should be selected based on their operating conditions. The common temperature resistance ratings of submersible motor winding wires are 60 ° C and 90 ° C.
Application:
The winding wires of submersible motors are mainly used for submersible motors operating in water. The winding wires of submersible motors are widely used in various industries, including agriculture, mining, refrigeration, and tap water. These wires are mainly used for submersible pumps, motors, or other submersible electrical equipment.
Conclusion:
The winding wires of submersible motors are key components for efficient operation of submersible motors used in various industrial applications. When selecting the winding wires for submersible motors, it is important to consider factors such as structure, temperature resistance level, working environment, conductors, insulation materials, usage, and specifications. Choosing the appropriate submersible motor winding wire for your application will ensure reliable and long-lasting performance.

---
