Common Rail Fuel Injection Pump Testing Equipment Test Machine Test Bench

Product Description

Product Introduction

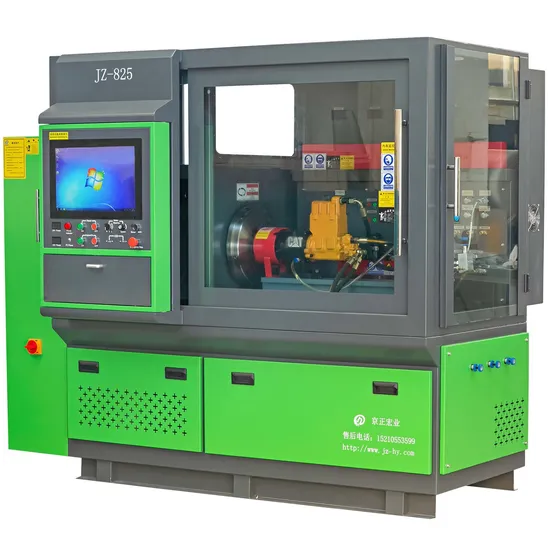

JZ-825 multi-function test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4,Euro-5,Euro-6 injectors and
high-pressure pumps. It can test thousands of injectors and high-pressure pumps, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on.
The experimental data are complete.
It can also be equipped with unit pumps & unit injectors, medium pressure injectors testing, actuated pumps and other optional functions.
Functions Description

1. Integrated flow sensor	18. BIP function
2. Full-automatic Fully function	19. Can test piezo injectors
3. With electronic measuring system	20. Can test common rail injectors
4. Prepositioned precise filter for sensor	21. Can test mid-pressure injectors
5. Intelligent algorithm Automatic calibration	22. Can test common rail pumps
6. Automatically heating/cooling control for test oil	23. Can test actuated pumps
7. Real-time display the fuel delivery graph	24. Can test unit injectors & pumps (EUI & EUP)
8. Bosch CP3 pump and high pressure oil rail with DRV (two-way DRV)	25. Can test Delphi CRSP pumps
9. Bosch datas are from the orginal equipment of EPS708	26. Can test Siemens DCP pumps
10. Denso, Delphi, Siemens data are calibrated from the latest injectors	27. Can test Bosch CP1/CP2/CP3 pumps
11. Oil level lower limit alarm	28. Can test DENSO HP3/HP4,HP0 pumps
12. Linear calibration of flow sensor	29. Can test testing X15,Q60 injectors
13. Industrial computer with touch-scree	30. Coding code of Denso QR code
14. Many language interfaces can be switched	31. Coding code of Delphi C2i,C3i code
15. Opening pressure and flow rate of oil nozzle	32. Coding code of Siemens VDO-IIC code
16.Data backup, software update and cloud upgradable	33. Coding code of Bosch piezo injectors
17. Measurement of resistance and inductance of injector's solenoid valve	34. Coding IMA code of Bosch 110 injectors

Our Advantage

Hardware advantage

1. Motor power is 22 KW

2. Air conditioning heat dissipation kit

3. Metering valve detect the fuel flow

4. Imported flow sensor from Germany

5. Equipped with Bosch genuine DRV

6. Equipped with Bosch genuine CP3 pump

7. Equipped with Bosch genuine common rail tube

8. Oil tank (including heating,refrigeration,liquid level detection,temperature detection)

9. Short-circuit protection, ground protection, over-pressure protection during the testing

10. Equipped frequency converter to achieve testing function under different speed conditions

11. Equipped precise filter before flow sensor, which can effectively keep the sensor clean and extend the flow sensor usage life

Software advantage

1. Injection timing responding sensing system of the injectors

2. Coding system, can generate different compensation codes and correction codes

3. Measurement system of resistance and inductance of injector's solenoid valve

4. More than 3000 test data used for different brands injectors and pumps calibrations

5. Data backup, system software and database upgrade free charge all the time by remote

6. Electronic measuring system, automatic testing the fuel quantity of all working conditions, and generate report after testing

7. Automatic test injectors under different working conditions, automatic analysis results, and generate report after testing

8. Intelligent algorithm is used to automatically calibrate the fuel quantity of the new injector, and generate reports after testing

Product Details
Technical Parameters

Technical Parameters
Output	22 KW
Power	3-Phase 4-Wire 380V 50/60HZ
Speed	0~4000 RPM
Rail Pressure	0~2600 Bar
Rail Pressure Precision	±5 Bar
Tank Volume	30 L
Fuel Temperature	40±2ºC
Filter Precision	< 5μm
Gross Weight	1450 kg
Packing Size	2400×1630×2100 mm
Speed Control Model	Converter Control
Temperature Control System	Air Conditioning Heat Dissipation
Nozzle Sensor	Imported Original Elliptical Type Flow Sensor
Fuel Pump Sensor	Imported Original Vane Type Flow Sensor
Language	English, Spanish, Russian,etc
Material	Metal Plate
Painting	Powder Painting, Durable
Color	Green (can be customized)
Logo	Jing Zheng Hong Ye (can be customized)
MOQ	1 Piece
Payment	40% Deposit, the rest paid before shipment
Warranty Time	12 months
Delivery time	30 days after prepaid
Shipping Packing	Wooden Case

Related Products and Fixtures
Packing and Delivery
Our Company
Exhibition
Why Choose Us
1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years.
Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team,and produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
Contact Us
Alisa Yuan | Sales Manager
Wuxi JiaMiao Auto Technology Co., Ltd
Address: No.1 Miaojiaan, Shitangwan industrial park, Luoshe Town Wuxi City Jiangsu Province China
Website: jm888888.en.made-in-china.com

---
