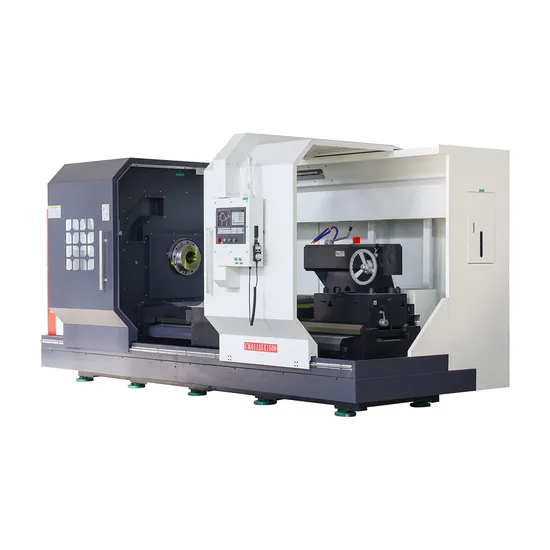

Ck61125 Heavy Duty Large CNC Lathe Horizontal Machine Tools Big Metal Lathe with Low Price

US$22,800.00
1-4 Pieces
US$21,700.00
5-14 Pieces
US$20,600.00
15-29 Pieces
US$16,400.00
30+ Pieces

Basic Info.

Model NO.
ck61125
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Setting Mode
Floor-type
Precision
High Precision
Certification
ISO 9001
Condition
New
Spindle Speed Series
Stepless Speed Change
Spindle End Form
D11
Tool Size
40X40
Spindle Driven Form
Four Gears
Tailstock Sleeve Movement
250mm
Spindle Hole Fron Taper
Metric 120 1:20
Transport Package
Wooden Case
Specification
3600*2000*2000mm
Origin
Shandong
HS Code
8458110090
Production Capacity
40000/Piecs

Product Description

Product Description
CNC lathe is one of the most widely used CNC machine tools. It is mainly used for cutting the inner and outer cylindrical surfaces of shaft parts or disk parts, the inner and outer conical surfaces of any cone angle, the complex inner and outer curved surfaces of revolution, cylinders, and conical threads, etc., and can perform grooving, drilling, reaming, reaming, etc. Hole and boring etc.
Advantages
Improving labor productivity and processing quality;
Shorten the production preparation cycle and reduce the requirements for workers' technical proficiency.
Features
High processing precision and stable processing quality; Multi-coordinate linkage is possible, and parts with complex shapes can be processed; When the processing parts are changed, generally only the NC program needs to be changed, which can save production preparation time; The machine tool itself has high precision and high rigidity, can choose favorable processing dosage, and has high productivity; The machine tool has a high degree of automation, which can reduce labor intensity. Detailed Photos

Product Parameters
Item unit ck61100
Maximum turning diameter of the bed mm φ1000
Maximum turning diameter on the pallet mm φ630
Maximum processing length mm 1500/2000/3000
Spindle drive form / Fourth gear
Spindle speed series / stepless speed change
Spindle speed r/min 30-84/53-150/125-350/300-835
Spindle end form / D11
Spindle hole front taper / Metric120 1:20
Spindle through hole diameter mm 105
X/Z axis positioning accuracy mm 0.025/0.03
X/Z axis repeat positioning accuracy mm 0.01/0.015
Workpiece machine accuracy / IT6-IT7
Work surface roughness / Ra1.6
X fast moving speed mm/min 4000
Z fast moving speed mm/min 6000
Tailstock sleeve diameter mm 100
Tail sleeve inner hole taper / MT6
Tailstock sleeve movement mm 250
Tool holdor form / Electric 4-station (optional horizontal 6-station)
Ball screw diameter*pitch mm X:30*06 Z:50*10
Tool size mm 40x40

Packaging & Shipping

Company Profile
Henan Rowdai Machinery Equipment Co.Ltd Located in Zhengzhou.the central place of China. With long time exporting machines experience, we can not only supplying our customers stable quality products ,but also more excellent service.we supply all kinds of Machine tool to international market, like Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, CNC Machining Center, Grinding Machine, Hydraulic Press, Bending Machine, Drilling Machine, Press brake, Shearing Machine, and Machine tool accessories. We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.
MILLING/DRILLING/TURNING/BAND SAWING/FORGING PRESS/METAL FORMING
WELCOME TO CONTACT WITH US!
