Long Lasting PVDF Board with Acid and Alkali Resistance Properties

Product Description

Product Description

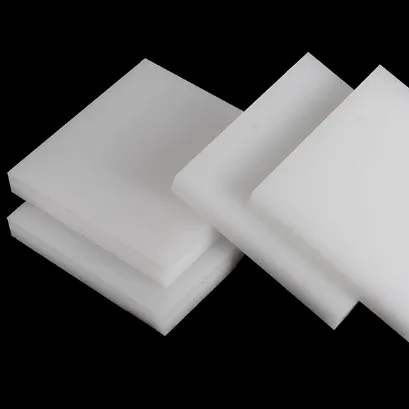

NAISFU-PVDF sheet(NSM10-35)
Discover the unparalleled capabilities of our PVDF sheets, expertly crafted to be welded into robust tanks and equipment using high-quality PVDF welding rods. Ideally suited for holding a diverse array of chemical liquids, these sheets are especially designed for the precise transmission of pure chemical reagents within sophisticated pure water systems and the semiconductor industry. Thanks to the remarkable chemical inertness of PVDF, it remains virtually unreactive with any medium, ensuring safety and reliability.
This remarkable paragraph highlights the exceptional characteristics of our product, including impressive high temperature resistance, allowing it to function continuously at temperatures up to 150 degrees. It also boasts excellent resistance to chemical corrosion and hydrolysis, superb protection against ultraviolet radiation and harsh weather conditions, and superior mechanical strength. Furthermore, it features good rigidity, commendable creep resistance, outstanding sliding and wear resistance, inherent low flammability, and exceptional electrical insulation performance.Detailed Photos
Personalize your experience with our PVDF sheets available for customization in a variety of vibrant colors.
Product Parameters

Name	Specification and size	unit	Corresponding weight
Extrusion	3mm*1.5m*3m	Kg/sheet	24.5
	4mm*1.5m*3m	Kg/sheet	32.5
	5mm*1.5m*3m	Kg/sheet	40.8
	6mm*1.5m*3m	Kg/sheet	48.9
	8mm*1.5m*3m	Kg/sheet	65.2
	10mm*1.5m*3m	Kg/sheet	81.5
	12mm*1.5m*3m	Kg/sheet	97.8
	15mm*1.5m*3m	Kg/sheet	122.3
	20mm*1.5m*3m	Kg/sheet	165
Molding	15mm*1m*2m	Kg/sheet	58.5
	18mm*1m*2m	Kg/sheet	69.5
	20mm*1m*2m	Kg/sheet	79
	25mm*1m*2m	Kg/sheet	95.5
	30mm*1m*2m	Kg/sheet	116.6
	35mm*1m*2m	Kg/sheet	134.7

PropertiesMechanical strength and toughnessHigh abrasion resistanceHigh tensile strengthHigh thermal stabilityHigh dielectric strengthHigh UV-resistanceHigh purityRelatively high coefficient of thermal expansionResistance to most chemicals and solventsWeldableApplication:Chemical Tank and Equipment ConstructionSemiconductor IndustryPower and Electrical EngineeringSolar photovoltaicValves&PumpesLaboratory EngineeringFood IndustryEnvironmental technologyHigh purity water
Company ProfileNaisfu Precision Technology (Taizhou, Jiangsu) Co., Ltd. is a distinguished enterprise dedicated to the production, research, and development of fluoroplastic raw materials and profiles, offering comprehensive sales, technical guidance, and after-sales services. Our product range features an extensive array of sizes and specifications, meeting international standards (GB, DIN, ANSI, JIS, BS) and also providing bespoke designs for non-standard products. Guided by our core philosophy-'technology produces excellence, quality creates brand'-we have earned the trust and admiration of millions of customers. Our flagship products (PVDF, FEP, ETFE, PFA) have garnered widespread acclaim across diverse industries including chemical, semiconductor, electronics, construction, biopharmaceuticals, and solar cells.Our AdvantagesBenefit from our highly skilled production personnel and an outstanding after-sales team, ready to resolve any product-related issues swiftly and offer expert guidance solutions.FAQQ:Are you a manufacturer or a trading company?
A:We are a manufacturer with our own production equipment.Q:How long does the delivery cycle take?A:Generally, it takes 7-15 days after payment, depending on the quantity of orders you provide.Q. What is your sample policy? A: We could offer the sample for free charge but your esteemed company will pay the cost of freight.Q. Do you test all your goods before delivery?A: Yes, we have 100% inner inspection in our own laboratory and plant before delivery.Q: How do you make our business long-term and good relationship?A: 1. We keep good quality and competitive price to ensure our customers benefit ;2. We respect every customer as our friend and we sincerely do business and make friends with them.
