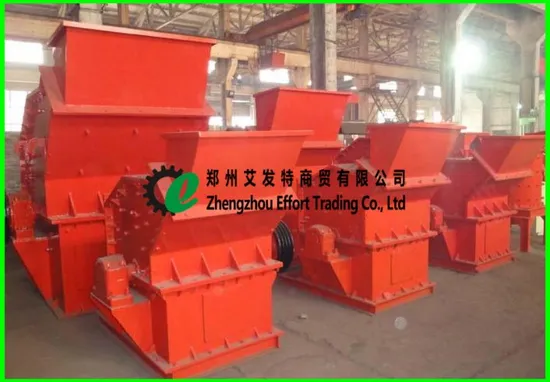

Simple Crushing Process Small Mobile Fine Impact Crusher

Product Description

Simple Crushing Process Small Mobile Fine Impact Crusher
1. High efficient fine impact crusher Application:
PCX type High efficient fine impact crusher is in absorbing advanced technologies at home and abroad, combined with the relevant industry specific working condition and development of the latest generation of High efficient fine impact crusher,used in all kinds of medium hardness of solid material finely, in the cement industry, finely limestone, gypsum, clinker, mixing materials, etc. Still can finely calcium phosphate, dolomite, perlite ore, etc. It can be widely used in building material, chemical fertilizer, mining and refractory materials and industry departments.
2. High efficient fine impact crusher Characteristics :
The particle size is small, uniform grain type, production capacity, hammer, long life, supporting small power, as the two become three broken, process simplification, simple structure, easy maintenance, smooth running characteristics.
3. Technical Data:

model	Feeder Opening (mm)	Feeding Size (mm)	Output size (mm)	Output size (mm)	Capacity (t/h)			Motor (Kw)
					cement clinker(t/h)	limestone	silica sand
800×400	400×185	120	≤5	5-20	20-30	30-45	35-45	37
800×600	500×250	180	≤5	5-20	35-40	40-55	45-55	45
800×800	550×330	180	≤5	5-20	35-45	60-65	55-65	45
1010×1010	1000×350	180	≤5	5-20	45-55	60-75	65-75	75
1200×1000	1200×400	180	≤5	5-20	80-110	80-100	80-100	90-110
1200×1200	1200×450	180	≤5	5-20	100-110	90-100	90-120	110-132
1400×1200	1500×500	190	≤5	5-20	100-150	100-150	120-150	160
1600×1400	1600×550	190	≤5	5-20	170-210	190-250	190-250	250
1800×1600	1800×800	190	≤5	5-20	250-270	280-310	280-310	280
1800*1800								325

---
