Haorui Patented Pet Bottle Label Remover Equipment for Bottle Recycling Line

Product Description

Product Overview

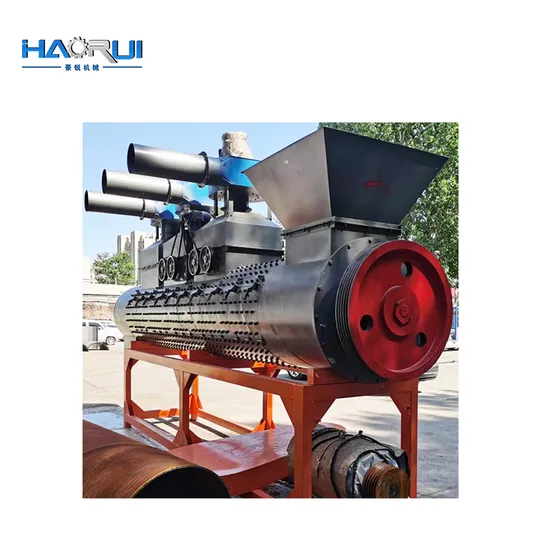

Multi-fuctional PET Bottle Label Remover Machine

Usage:Seperate the label of the PET bottles

The whole line comes out as clean bottles
Product Specification

Different needs and different choices, we can meet

type	Capacity	Machine size	motor	Blade material
600	1000kg/h	4m(L)*1.1m(W)*2.2m(H)	15kw	alloy
800	1500kg/h	6m(L)*1.2m(W)*3.45m(H)	37kw	alloy
900	2500kg/h	6m(L)*1.2m(W)*3.45m(H)	37kw	alloy
1000	3000kg/h	6.5m(L)*1.25m(W)*3.8m(H)	55kw	alloy

High label remove rate(round bottle> 99% , bale bottle> 96% )
600type 800type

900type 1000type
Details Images
Unique sharp knife flat knife design,with patent certification
High label removing ratio, and low bottle damage ratio

The machine with replaceable blades, easy replacement and save labor
Sufficient thickness for better wear resistance

All the production process is completed independently by our factory Capacity up to 3500kgs/h Unique design blade quantity and shape,with patent certification. Most hot-selling item, 98% customers gave good feedback. Don't damage bottles, reduce neck broken, reduce material loss. Good design label separation chamber, can used for wet bottle, label come out well, not block
Packaging&Shipping
Ensure fast transportation without damage
Company ProfileBaoding Haorui Machinery Manufacturing Co.,ltd was established in 1992,is a professional manufacturer and exporter that is concerned with the design,development and production of PET bottle crushing and washing machine, PP PE HDPE LDPE plastic crushing and washing machine, pelletizing machine .There are over 100 technicians in our workshops which covers 20000 square meters. Over 28 years of plastic recycling machines production experience ,enable us to be TOP3 plastic recycling machine factory in China. Our own R&D team make our machine design unique, OEM and ODM service are also welcome. Our main products include bale opener, label remover, plastic crusher, floating tank, screw feeder, high-speed friction washer , hot / cold washer, dewatering machine, pipe dryer and so on.We insist on the principle of "quality is first" and inspect the machine after producing " which make our market more popular in Domestic and over 40 sets of PET bottle washing line(four 6000kg/h capacity in Nigeria ,Ghana etc), PP PE HDPE LDPE washing line ,pelletizing machine were installed in Middle East,Africa,South America,South East, South Asia and so on
Factory

successful case

our advantages
FAQ
Q: How often are the Crusher blades sharpened?A: After continuous working at 30-40hours, the blades have to be sharpenedQ: How long does it take for changing blades-Remove and install blades?A: Depending on the worker skilled or not. Normally 2-3hoursQ: How about the rate for removing the labels by Label remover?A: Compressed bottle: more than 96% Un-compressed bottle: more than 98%Q:What's the temperature of steam washer ?A: Usually 80-90ºC ( If the temperature is over 100ºC, the Flake will be roll.so the best temperature is 80-90ºC)Q: What's the moisture after Horizontal dewatering machine?A: About 1.8%. Adopt Swedeen SKF bearing, with bearing layer on the surface of screw bladesfor longer working life.Q: How often are the Crusher blades sharpened?A: After continuous working at 30-40hours, the blades have to be sharpenedQ: How long does it take for changing blades-Remove and install blades?A: Depending on the worker skilled or not. Normally 2-3hours

---
