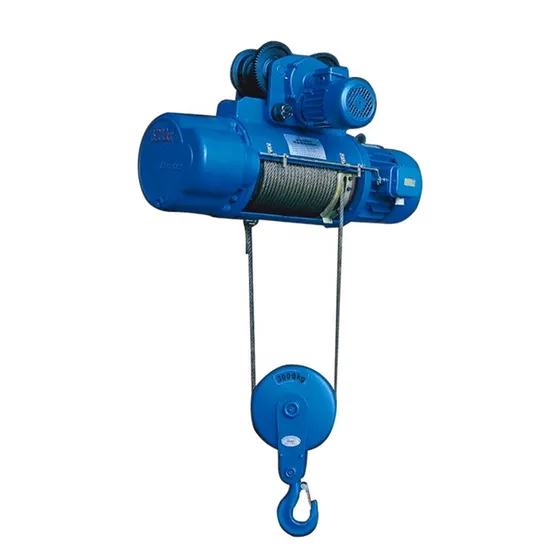

Electric Hoist Winch Trolley Mini Wire Rope Electric Hoists

Product Description

electric wire rope pulling hoist features:

1. reducer:third-class dead axel helical gear transmission structure is adopted;gear and gear axel are made of heat treated alloy steel ;case ang case cover with precise assembly and good seal are made of quality cast iron .the reducer is independent.so it;s easy to load unload it.
2. control box :it has device with up and down stroke protection of break off limiter and can cut offmain cicuit in an emergency,which ensures safe operation of electric block ,electric rlrmrnyd str of long service life and operational safety.
3. steel wire rope :it uses GB1102-74(6X37+1)hoist steel wire rope which is durable in use.
4. conical motor:the hoist motor uses conical rotors of relatively stronger starting torque to brake asynchronous motor and dose not fgrade insulation and its grade of protecion is ip44/ip54
5. button swith :it's hand-operated,easy to handle ,and has two modes of cord operation and cordless remote control.

Type	CD1 / MD1
Capacity(T)	0.5-30
Lifting Height(M)	6-100m
Lifting Speed(M/Min)	3.5-8m/min
Power supply	AC-3Phase-220//230380/400/415/440V-50/6
N.W(kg)	AC-3Phase-220//230380/400/415/440V-50/6
Working temperature	-20 ~ 40 ºC
Motor protection class	IP54 IP55 IP65

Wire rope hoist can be used on straight, curved, circular overhead rails on the same plane, and can also be used on electric single-beam, manual single-beam, bridge, suspension, cantilever, gantry cranes with I-beam as the track .
Electric hoist is widely used in factories, warehouses, docks, power stations, logging sites and other occasions. It is the most ideal lifting equipment for lifting and transporting items.
Packing & Delivery terms:
1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.
3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.
Any further more information just feel free to contact us. Thanks!

---
