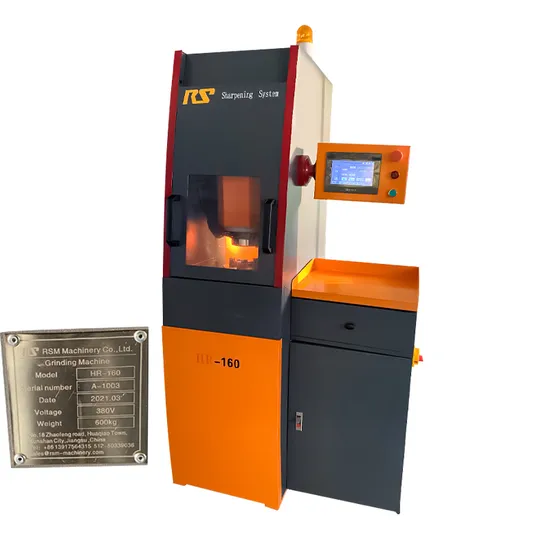

With HR-160 easy to use to touch screen interface Percision grinding turret,thin turret,Murata and other series of molds.
| Maximum tool diameter | 160 mm (6.299") (Type E (4-1/2") die) | Vertical feed fast speed | 300mm/min |
| MInimum tool diameter | 1.51mm | Vertical feed slow speed | 1.2mm/min |
| Minimum tool height | 150 mm (5.906") (when Type E (4-1/2") shear-angled punchbody jig is used) | Grinding speed | 0.06mm/min-0.9mm/min |
| Standard grinding wheel | Made of CBN and 135 mm (5.315") in diameter (conductive) | Table motor | 0.1 KW,4P,1/30 |
| Spindle motor | 2.2 KW,2P | Table speed | 50 rpm |
| Spindle rotating speed | 2800rpm/50HZ | Coolant motor | 0.06 KW 2P |
| Vertical feed motor | 0.1 KW servo motor with 1/12 gear head | Coolant tank | 34 L |
| Vertical travel distance | 240mm | Air | 0.5 MPa |
| Weight | 500 kg | Machine dimensions | 813 × 858 × 1930 mm |
