M3330 Bench Grinder with Dust Removal Device /Table Bench Pedestal Grinder M3320 M3325 M3340

Product Description

Features:

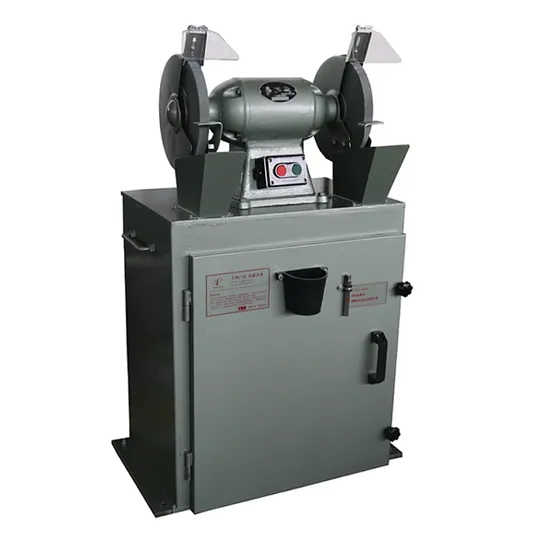

Grinding Machine With Dust Sucking
Heavy Duty Bench Grinders with Built in Dust Collectors are specially designed for collection of dust
generating during the grinding process. These are mounted on a rigid steel frame. This machine is directly
driven by heavy duty Drive 2.2 KW 3 H.P, 3 Phase 50 cycles, 1440 RPM complete with starter, Two Grinding
Wheels 14" x 2" Aluminium Oxide, heavy duty M.S Wheel Guards, Job Rests. Dust Collecter Motor 1.5 H.P 3
Phase. Dust Collector is fitted with a manual shaker. Dust Drawer, Big Filters, 2 Nos. Suction Inlet dia. 100 mm
I.D Model - BIDC-314.
Dust Collector have high filtering efficiency to enable it to grasp even the finest dust particles. Cotton filtering
sleeves provide it with total security against inflammation. Other size of Grinders available on request.
SPECIFICATIONS:

Model	M3320	M3325	M3330	M3340
Power	1.37kw	1.5kw	2.37	3.37
Voltage	380v	380v	380	380
speed	2850rpm	2850rpm	1420	1420
Wheel size	200*25*32mm	250*25*32mm	300*40*75	Φ400*40*Φ127
Phase number	3	3	3	3
Work quota	40%	40%	40	40
Temperature rise	75ºC	75ºC	75	75

---
