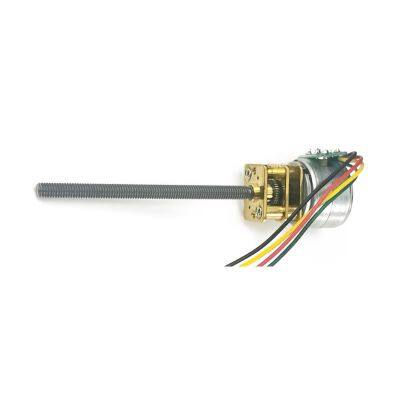

15mm 12V DC Micro Stepper Mini Stepping Motor

Product Details

Product Description

Product Description

Technical Parameter of Micro Stepper Motor
No.	Model No.	OD (mm)	Step Angle (°)	Existation Method	Drive Mode	Voltage (V DC)	Current /Phase (mA)	Resistance /Phase (Ω)	Output Torque (gf.cm)	Insolution resistance (Ω)	Noise (dB)	Working environment temperature(ºC)
1	01-005-001	Φ8	18	2-2 Phase Exciting	BI-Polar Drive	5.0	/	30	100.00	100V AC, 1S	≤50	-40~+80
2	07-005-001	Φ6	18	2-2 Phase Exciting	BI-Polar Drive	3.3	300	40	20.00	100V AC, 1S	≤50	-20~+80
3	07-005-002	Φ6	18	2-2 Phase Exciting	BI-Polar Drive	3.3	165	20	/	100V AC, 1S	≤50	-20~+80
4	07-005-011	Φ6	18	2-2 Phase Exciting	BI-Polar Drive	3.3	110	30	0.06	100V AC, 1S	≤50	-20~+80
5	07-005-016	Φ6	18	2-2 Phase Exciting	BI-Polar Drive	3.3	300	14	0.20	100V AC, 1S	≤50	-20~+80
6	07-005-027	Φ8	18	2-2 Phase Exciting	BI-Polar Drive	3.3	160	20	80.00	100V AC, 1S	≤50	-20~+80
7	07-005-031	Φ8	18	2-2 Phase Exciting	BI-Polar Drive	3.3	250	20	0.15	300V AC, 1S	≤50	-20~+80
8	07-005-032	Φ8	18	2-2 Phase Exciting	BI-Polar Drive	3.3	165	20	1.50	100V AC, 1S	≤50	-20~+80
9	07-005-033	Φ8	18	2-2 Phase Exciting	BI-Polar Drive	3.3	160	20	0.25	100V AC, 1S	≤50	-20~+80
10	07-005-034	Φ8	18	2-2 Phase Exciting	BI-Polar Drive	5.0	100	50	0.23	100V AC, 1S	≤50	-20~+80
11	07-005-036	Φ8	18	2-2 Phase Exciting	BI-Polar Drive	5.0	450	14	0.60	300V AC, 1S	≤50	-20~+80
12	07-005-041	Φ10	18	2-2 Phase Exciting	BI-Polar Drive	5.0	90	55	0.30	300V AC, 1S	≤50	-20~+80
13	07-005-042	Φ10	18	2-2 Phase Exciting	BI-Polar Drive	5.0	90	55	0.30	300V AC, 1S	≤50	-20~+80
14	07-005-043	Φ10	18	2-2 Phase Exciting	BI-Polar Drive	5.0	160	31	5.00	100V AC, 1S	≤50	-20~+80
15	07-005-044	Φ10	0.36	2-2 Phase Exciting	BI-Polar Drive	5.0	160	31	7.00	100V AC, 1S	≤50	-20~+80
16	07-005-060	Φ15	18	2-2 Phase Exciting	BI-Polar Drive	12.0	400	31	180.00	100V AC, 1S	≤50	-20~+80
17	07-005-061	Φ15	18	2-2 Phase Exciting	BI-Polar Drive	6.0	300	15	200.00	100V AC, 1S	≤50	-20~+80
18	07-005-062	Φ15	18	2-2 Phase Exciting	BI-Polar Drive	6.0	300	15	200.00	100V AC, 1S	≤50	-20~+80
19	07-005-079	Φ15	18	2-2 Phase Exciting	BI-Polar Drive	12.0	760	31	720.00	100V AC, 1S	≤50	-20~+80
20	07-005-081	Φ20	18	2-2 Phase Exciting	BI-Polar Drive	12.0	300	40	30.00	100V AC, 1S	≤50	-20~+80

---
