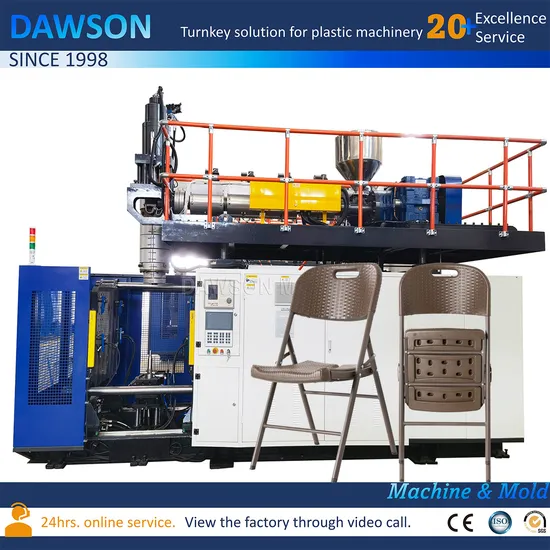

Stadium Use Plastic Foldable Chair Making Big Extrusion Blow Molding Machine

Product Description

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

Product Description

Company Profile
High Quality Blow Molding mould
In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.
- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU,
HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE... DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, blow molding machine,
injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our
energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market, customers from more than 45
countries, we provide complete solution for your plastic industry business, as well as all sorts of technical support & after-sale
services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
Packaging & Shipping

Our service

Product Parameters

Extrusion blow molding machine DSBD100

extruder
1	Screw diameter	100mm
2	L/D ratio	25:1
3	Screw speed	15~50r.p.m.
4	Drive motor	45Kw
5	Heating zone with cooling fan	6 zone
6	Output/Capacity	180 Kg/hr(HDPE particle)
8	Screw heating capacity	21 kw
9	Groove feed barrel cylinder	Have IKV
10	Gear box	Hard gear decelerator
11	Ladder and safety rails	Have
Accumulator Head
1	Accumulator capacity	12L(9kgHDPE)
2	Design	First in and first out
3	Heating zone	6 zone
4	Heating capacity	25.1kw
5	Max die&pin diameter	420mm
6	Accumulator push-out stroke measurement	Transducer Italy brand
7	Injection pressure	12 Mpa
8	Extruder stop	Have
CLAMPING UNIT
1	Tie bar	Two tie bar
2	Platen size	1050(W)X1200(H)
3	Max Size of mould(W/H)	900/1450mm
4	Clamping force	420KN
5	Close/Open stroke	500-1300mm
6	Clamping stroke measurement	Transducer Italy brand
7	Hydraulic valve	Taiwan brand
8	Number of hydraulic cylinder	1
9	High pressure	14 Mpa
10	Support parts for platen movement	Liner Guide
HYDRAULIC SYSTEM
1	Main motor/vice motor	AC22Kw/4Kw
2	Hydraulic valve	Taiwan brand
3	Hydraulic pump	Taiwan brand
4	Oil tank capacity	400L
5	Operating pressure	12 Mpa
6	Cooling water for oil	fixed
7	Control of oil level	be observed dipstick
PNEUMATIC SYSTEM
1	Operating pressure	0.8 Mpa
2	Blow pressure	0.8 Mpa
3	Needle blow circuit	High & low pressure
4	Intermittent blow	Have
5	Controlled support air for parison	Have
6	Air Valves	Taiwan brand
7	Quick exhaust for support air	Have
PARISON CONTROL
1	Programmer	JAPAN MOOG
2	Servo valve	MOOG
3	Servo cylinder	Intergret of die head
4	Hydraulic pack	TAIWAN YOSHE Variable Displacement Piston Pumps
ELECTRICITY
1	Contactor	Famous germany brand
2	Total connected load (approx.)	130kw/h
3	Average energy consumption (approx.)	65kw/h
WATER COOLING
1	Machine water consumption	6000L/h
2	Mold water consumption	6000L/h
AIR CONSUMPTION
1	Compressed air consumption	1.2 kgf/cm2, 3000 L/min
OTHER FEATURES
1	PLC control	MITSUBISHI
2	Human machine interface	Hitech
3	Recipe storage in hard disk	Available
HEATING CONTROL
1	Power supply to heating element	Relay + Contactor	famous brands
2	Control	PLC controle
3	Type of thermocouple	K Type
4	Adjustable lower and upper limit alarm	Have
5	Cold start prevention for screw	Have
6	Alarm for thermocouple and heating element breakage	Have, heating element breakage by anperemeter
7	Pre-heating function	Have
Die-ring AND Die-pin
1	one sets of die & pin	One set according to customer
2	Test material	Buyer supply 300kg material to seller for machine testing
OPTION
1	Bottom blow (hydraulic) and sealing unit (pneumatic) Optional	Double blow pin (including expand & up-down & parison seal)
2	Robot	Optional
3	Machine Dimension	6.8×3.3×5
4	Total weight	20

---
