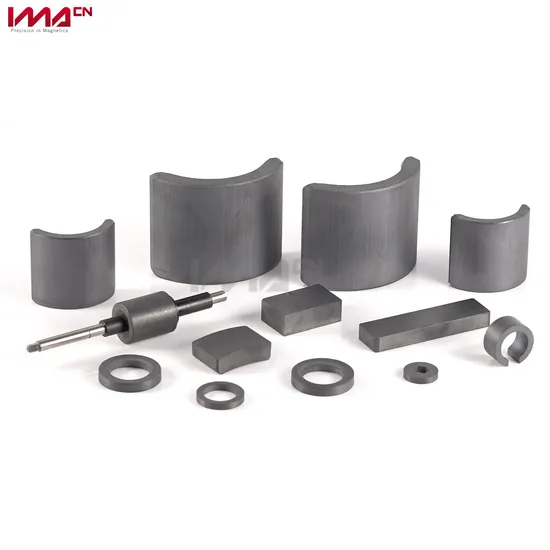

Sintered Ring/Block/Arc/Segement Rare Earth Permanent Ferrite Magnets for Motor/Generator

Product Description

Sintered Ring/Block/Arc/Segement Rare Earth Permanent Ferrite Magnets for Motor/Generator Product Description

Product Name	Ferrite Magnets
Demension	Customized
Coating	No coating or customized
Shape	Disk, Block, Ball, Ring, Cylinder, Tile etc. or customized
Magnetization Direction	Thickness, Length, Axially, Diametre, Radially, Multipolar
Application	Refrigerator Magnets, Loudspeakers, Small Electric Motors, Microwave Components, High-frequency Inductors and Transformers
Packaging	Vacuum packing, Cystosepiment, Carton Box
Delivery Time	15-30 days

Hard Ferrite magnetic performance table

Card number	The main magnetic				SJ/T10410-2016
	Br (T)	HCB (kA/m)	HCJ (kA/m)	(BH)max(KJ/m3)	Corresponding to the grade
	Br (KGs)	HCB (KOe)	HCJ (KOe)	(BH)max(MGOe)
FS-9/21	0.2-0.235	125-160	210-280	6.5-9.5	Y8T
	2-2.35	1.6-2.0	2.6-3.5	0.8-1.2
FS-28/14	0.36-0.4	135-170	140-200	22.5-28.0	Y25
	3.6-4.0	1.7-2.1	1.8-2.5	2.8-3.5
FS-28/22	0.36-0.39	200-250	225-255	23.0-28.0	Y26H-1
	3.6-3.9	2.5-3.1	2.8-3.2	2.9-3.5
FS-30/18	0.37-0.4	175-210	180-220	26.0-30.0	Y28
	3.7-4.0	2.2-2.6	2.3-2.8	3.3-3.8
FS-30/25	0.38-0.40	240-260	250-280	27.0-30.0	Y28H-1
	3.8-4.0	3.0-3.3	3.1-3.5	3.4-3.8
FS-28/38	0.36-0.38	271-295	382-405	26.0-28.5	Y28H-2
	3.6-3.8	3.4-3.7	4.8-5.1	3.3-3.6
FS-31/23	0.38-0.4	230-275	235-290	27.0-31.5	Y30H-1
	3.8-4.0	2.9-3.5	3.0-3.6	3.4-4.0
FS-32/31	0.395-0.415	275-300	310-335	27.0-32.0	Y30H-2
	3.95-4.15	3.5-3.8	3.9-4.2	3.4-4.0
FS-33/16	0.4-0.42	160-190	165-195	30.0-33.5	Y32
	4.0-4.2	2.0-2.4	2.1-2.4	3.8-4.2
FS-35/23	0.4-0.42	190-230	230-250	31.5-35.0	Y32H-1
	4-4.2	2.4-2.9	2.9-3.1	4.0-4.4
FS-34/23	0.4-0.44	224-240	230-250	31.0-34.0	Y32H-2
	4-4.4	2.8-3.0	2.9-3.1	3.9-4.3
FS-35/22	0.41-0.43	220-250	225-255	31.5-35.0	Y33
	4.1-4.3	2.8-3.1	2.8-3.2	4.0-4.4
FS-35/25	0.41-0.43	250-270	250-275	31.5-35.0	Y33H
	4.1-4.3	3.1-3.4	3.1-3.5	4.0-4.4
FS-35/30	0.41-0.43	285-315	305-335	31.8-35.0	Y33H-2
	4.1-4.3	3.6-4.0	3.8-4.2	4.0-4.4
FS-36/26	0.42-0.44	250-280	260-290	32.5-36.0	Y34
	4.2-4.4	3.1-3.5	3.3-3.6	4.1-4.5
FS-38/24	0.43-0.45	230-260	240-270	33.1-38.2	Y35
	4.3-4.5	2.9-3.3	3.0-3.4	4.2-4.8
FS-38/26	0.43-0.45	260-290	265-295	35.1-38.3	Y36
	4.3-4.5	3.3-3.6	3.3-3.7	4.4-4.8
FS-40/29	0.44-0.46	285-315	295-325	36.6-40.6	Y38
	4.4-4.6	3.6-4.0	3.7-4.1	4.6-5.1
FS-41/32	0.44-0.46	315-345	320-350	37.6-41.6	Y40
	4.4-4.6	4.0-4.3	4.0-4.4	4.7-5.2
FS-42/25	0.45-0.47	245-275	255-285	38-42	Y41
	4.5-4.7	3.1-3.5	3.2-3.6	4.8-5.3
FS-42/38	0.45-0.47	315-345	385-415	38.5-42.5	Y41H
	4.5-4.7	4.0-4.3	4.8-5.2	4.8-5.3
FS-44/35	0.46-0.48	315-335	355-385	40.0-44.0	Y42
	4.6-4.8	4.0-4.2	4.5-4.8	5.0-5.5
FS-44/40	0.46-0.48	325-345	400-440	40.0-44.0	Y42H
	4.6-4.8	4.1-4.3	5.0-5.5	5.0-5.5
FS-45/35	0.465-0.485	330-350	350-390	40.5-45.5	Y43
	4.65-4.85	4.1-4.4	4.4-4.9	5.1-5.7

FAQ
Q: How to get prompt quotation?
A: Kindly offer us your requirements about magnet grade, size, quantity, coating, magnetic direction, work tempreture ect.. Then best price will be offered during 24 hours.
Q: How long is your lead time?
A: Generally it is 5-10 days if the goods or materials are in stock. or it is 30-35 days for new production, it is according to the order quantity.
Q: What's your MOQ ?
A: We have no strict MOQ , if we can do , we will try our best to cooperate. If any questions as small quantity , we will be open to communicate with you for better solution.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.

---
