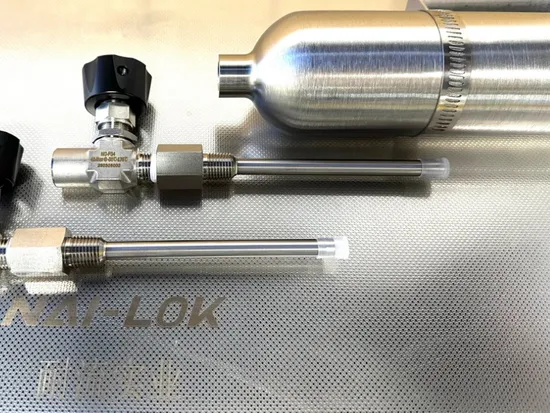

Sample Cylinder 5000psi Stainless Steel SS316 1/4 NPT Female 500ml Oxygen Cylinder with Outage Tube for Petroleum Industrial Gas Sample Bottles

Product Description

Sample Cylinder 5000psi Stainless Steel SS316 1/4 NPT Female 500ml Oxygen Cylinder for Petroleum Industrial Gas Sample Bottles
Pressure Vessel for Sample System Seamless Gas Sample Containers Gas Bottle
Treatment: Vulcanization Coating, Sulfur Passivation Coating
Volume:150ml,300ml,500ml,1000ml,1500ml,2000ml,1Gal
Sample CylindersFeatures* Working pressure up to 5000 psig (344 bar)* Internal volume from 40 to 3785 cm³* double-ended* Seamless tubing body provides consistent wall thickness, size and capacity* Heavey wall end connections provide strength and resist flaring* 316L 904L and alloy 625 / HC276 /HC22 and alloy 400 stainless steel materials available

Materials Grade/Cylinder Specification	Working pressure, psig (bar)	Internal Volume cm³± 5%	P-Female NPT	Dimension,in.(mm)
				D	L	Minimum wall thickness	Weight lb(kg)
Double-Ended
316L S.S	1800(124)	150	1/4 or 1/2	2.00(50.8)	5.25(133)	0.093(2.4)	0.94(0.43)
		300			8.94(227)		1.80(0.82)
		500			13.8(351)		2.60(1.20)
316L S.S	3000(344)	150	1/4 or 1/2	1.90(48.2)	8.00(203)	0.240(6.1)	3.00(1.40)
		300			14.5(368)		5.60(2.50)
		500			23.5(597)		9.10(4.10)
Alloy 400	1800(124)	150	1/4 or 1/2	2.00(50.8)	5.25(133)	0.093(2.4)	0.94(0.43)
		300			8.94(227)		1.80(0.82)
		500			13.8(351)		2.90(1.3)

Custom design services are available! User shall provide effective on-site sampling media pressure, temperature, type of media and specific on-site sampling environment for us. Sampling Systems Points designs and manufactures by ourself, assemble many spare parts of liquid samplers, Sample Cylinder, and sample coolers, valves, tube fitting, flange and do on. These systems collect toxic or volatile organic chemicals and process streams, and prevent the escape of emissions into the atmosphere. This is a new non-leaking, pollution free sampler which is used for sampling all kinds of toxic, corrosive, explosive and flammable samples from petrochemical process pipe.
Our Sampling System Units performs these tasks obtaining representative and contamination-free samples safely. All sampling systems whether gas samplers, liquid samplers, or custom samplers, can be made to operate manually or automatically and are designed to meet hazardous area classifications if applicable.
Custom design services are available! We can also design and manufacture sealed sampling device to meet your special technical and safety requirements.
Sampling Systems offers many different liquid sampler options for collecting liquid samples. These units allow the user to collect samples from a wide range of applications, from high pressure to low pressure, and various different temperature ranges. Many of the options can be modified to operate automatically.

---
