China Factory Price Manufacturer CNC Metal Spinning Lathe Machine CNG Seamless Cylinder Gas Cylinder Neck Threaded Screw Machine

Product Description

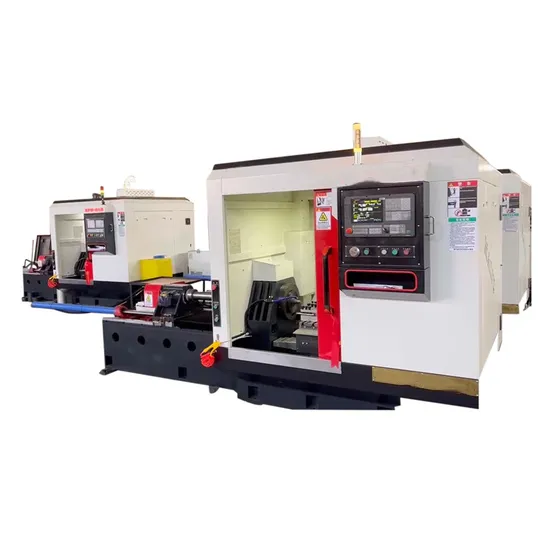

CNC threading machines for Fire extinguisher CNG oxygen cylinder
Product Description

No	Item	Data
1	Diameter range	φ141mm--φ356mm
2	Length range	300mm-2000mm
3	Main motor power	5.5KW converter motor
4	Converter motor	z-axis : 10M/MIN	X Stroke:10M/MIN
5	Tool holder	horizontal structure
6	Range of spindle speeds	100-1000r/min

Product Parameters

Machine processing :
Step 1.Radial facing, cylindrical turning---finish the end face by the outer circular knife and turning of outer chamfer
Step 2.Inside hole--adopts lathe processing of inner hole of inner hole cutter
Step 3.Threading --adopts thread tool


Application
Seamless cylinder Tube neck drilling machine is suitable for bore of cylinder bottleneck, and processing of radial facing, inside-hole, cylindrical turning as well as threading, which are realized by NC programming. Single station device is adopted for input and output materials (semi-automatic); The work piece clamping adopts the front top bowl positioning.


Application Application Application
CNG Gas cylinder Type 1 Oxygen Cylinder long tube Trailer CNG Gas cylinder Type 2
CNG Gas cylinder Type 3
CNG Gas cylinder Type 4

Related Products
CNG Gas Cylinder Stamping Machine
Hydraulic system is a two-pump dual hydraulic system (piston pump and gear pump), and the two pumps can operate independently.
1. The fuselage is a steel plate welded structure, which requires good rigidity and stability. The fuselage weighs about 8 tons
(excluding hydraulic system and loading and unloading systems).
2. The bottle body is positioned at the front, the electronic encoder is positioned accurately, the rear is positioned with a screw drive, and the rear cylinder pushes the front The sliding seat moves back and forth on the guide rail.
CNG Cylinder Hot Spinning Machine
This machine is designed for cylinder's necking-in and bottom closure of high pressure cylinders, CNG cylinder as well as the other pressure vessels. The maximum applicable diameter is 406mm, and the maximum spinning length is 2000 mm, its controlling system adopts Siemens PLC.
The tube blank is sent to the feeding position by the conveying line, the turning frame holds the tube blank, the tube blank is automatically rolled into the rotating frame, the feeding machine trolley moves forward, and the tube blank is automatically clamped and sent to the heating furnace (automatic positioning), and the clamp tightly loosen and rotate the heating.

Company Profile

We are professional manufacturer of CNG/LPG/LNG cylinders manufacturing machine for over 30 years. our machines have been exported to Russia, Ukraine,USA,UK,Turkey, Australia, Kenya,Egypt, India etc...

FAQ

FAQ
Q: Are you a manufacturer or a trader?
A: Manufacturer
Q: Can the machine be customized?
A: Can be customized according to customer needs
Q: Is it possible to provide on-site installation and how about after-sales service?
A: Yes, we provide after-sales service and installation training services. The site service, such as installation and commission fee will be charged daily: USD100/day/person, the accomodation, food and transportation in Turkey should be at customers plus the return trip air tickets.
Q: Can third-party testing services be provided?
A:Yes BV, SGS, CE are all available

---
