Cylinder Block Surface Grinding Machine Csg330

Product Description

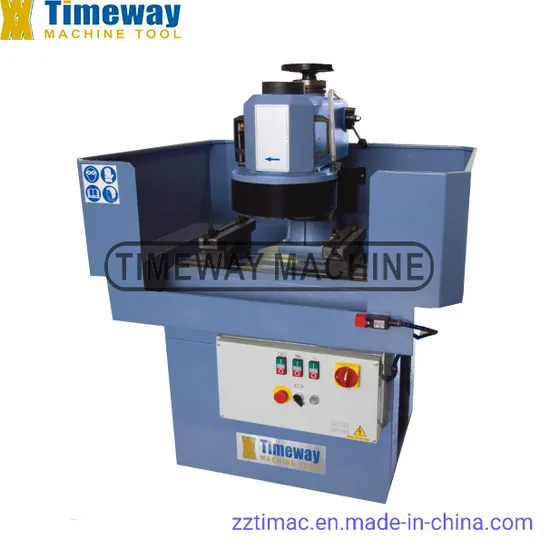

Cylinder Block Surface Grinding Machine
PARE 1---Product discription
FEATURES: The resurfacer CSG330 is on easy to use machine, designed for the resur-facing of car and light truck engine heads made of aluminium er cast iron.The distinctive working system where the head feeds and the table stands, offers an high working precision,reducing the overal dimensions. The main parts compounding the machine like head, table and column are made of strong cast iron and the assembly is mounted on a base cabinet which includes an easy to reach control panel.
Features like the segmented grindig wheel and the resurfacing tool, the coolant system complete with setting tank and pump allow to recondition whether cost iron surfaces or aluminium with great results. Moreover the machine is supplied with a sefety and splash guard, and an efficient stone wheel dresser complete with diamond.
PARAMETER:

Model	CSG330
Table surface: Max. dis. between table and wheel: Grinding wheel vertical travel: Grinding wheel diamater: Spindle speed: Automatic feed speed: Wheel motor power: Feed motor power: Dimensions(LxWxH): Weight:	670x270mm 330mm 205mm 330mm 1400rpm 145mm/min 1.5kw 0.11kw 1220x1080x1670mm 405kg

PART 2--- Our Services
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Part 3---Company Information

"TIMEWAY MACHINE" is a registered Chinese business business located in Zhengzhou city, in the center of China, and has been opearting in the machinery industry for many years.

Our factory is the joint-stock enterprise, founded in 1946, has 50 years of machine tool manufacturing history.Occupies more than 500acres, built a foundary, machining, heat treatment, assembly, quality inspection, painting, logistics and other advanced production lines.

Our product mainly cover lathes, Milling, Drilling, Gringding, Sawing, Shaping/Slotting and related accessories&tools, etc.
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
