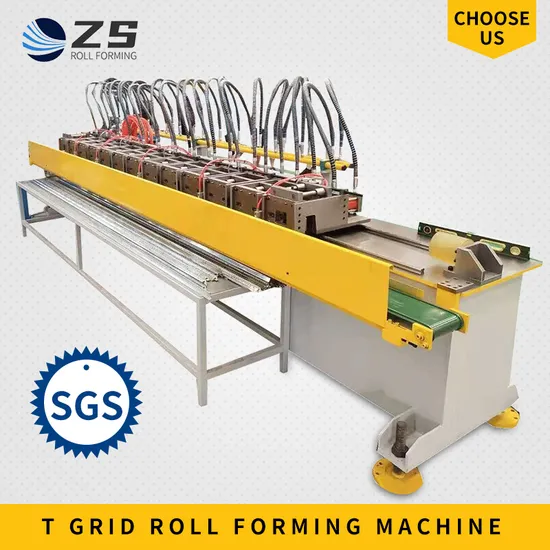

T Bar Suspended Ceiling Grid Light Gauge Steel Framing Machine

Product Description

Product Description

Main T Grid & Cross T Grid Roll Forming Machine
We provide you the fully automatic machine with in-line punching of T-bars in the various custom models and sizes. The ceiling T-Bar, T runner roll forming machines are consisted of a Main T-Bar Machine, a Cross T-Bar Machine and an Angle Roll forming machine, for manufacture main T-Bar, Cross-T-Bar, wall angle, ceiling panel.

No.	Technical details
1	Material Of Roller	Cr12,with hard treatment
2	Stations Of Roller	18
3	Diameter Of Shaft	40mm
4	Material of Shaft	Material of Shaft
5	Power	5.5kw+11kw
6	Working Speed	28-30m/min
7	Punching and cutting driven	Hydraulic oil pump and servo motor

Workflow
Decoiler→Feeding Guide Device→Rolling Forming System→Hydraulic Non-Stop Cutting and Punching Device→Exit Rack

No.	Item		Unit	Parameter	Remark
1	Material
		Type		PPGI, PPGL, GI, GL, PPAL	As requirement
		Thickness of Material	mm	0.3-0.6mm	As requirement
2	Material Width		mm	Follow with design	As requirement
3	Production Speed		m/min	Common speed: 35m/min	Adjustment
				High speed: 35-40m/min	As requirement
4	Effective Width of Product		mm	Follow with design	According to drawings
5	Roller Material			45#, Cr12, GCr15, GCr12MoV	As design
6	Drive Type			By Chain or Gear or Gearbox
7	Motor Power		kW	5.5	As design
8	Brand of Electric Control System			Delta or Siemens	Selectable
9	Dimension ( L* W * H )		m	5.5*1.2*1.5m	Based on design
10	Warranty		Month	15

Feeding Guide Device
The feeding guide device at the main entrance of the machine during work,Raw materials on both sides of the plate the enter into the machine by the guiding device,make the raw materials and roll forming system to maintain the correct position.The guiding position can be adjusted by the manual screw mechanism,and the feeding guide width can be adjusted independently.
Rolling Forming System
Forming mold: Cr12 molding steel, through vacuum quenching heat treatment to HRC60-62 °then grinding the inner
Hole and the end face. The precision machining roller surface with CNC lathe
Shafts material:40Cr steel,CNC lathes,Heat Treatment,hard Chrome Coated
With thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Main motor and 14 reducers combination driving,about 12-step to form
Main Motor =5.5KW,Frequency speed control
Punching System

It is full autoamtic punching with cutting system, and it is driven by hydraulic, it is can keep long time high speed working.
Heavy quality maual decoiler:1 Set
Weight support:3T
Hydraulic oulp pump is control cutting in automatic working.
Power:7.5kw
Pump type: Gear pump
Comprehensive After-Sale Service
1. Warranty: We provide an18month warranty period starting from the date of machine receipt.
During this 18-month period, any necessary replacement parts will be supplied at no cost.
2. Extensive technical support for the entire lifespan of our machinery, ensuring seamless productivity.
3. On-site Assistance: Our expert technicians are available for on-site installation and training services at an additional fee. Terms of Trade:

Minimum order quantity (MOQ)	1 Set
Delivery time	about 60 workdays
Port of loading	port of Tianjin
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style:

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
