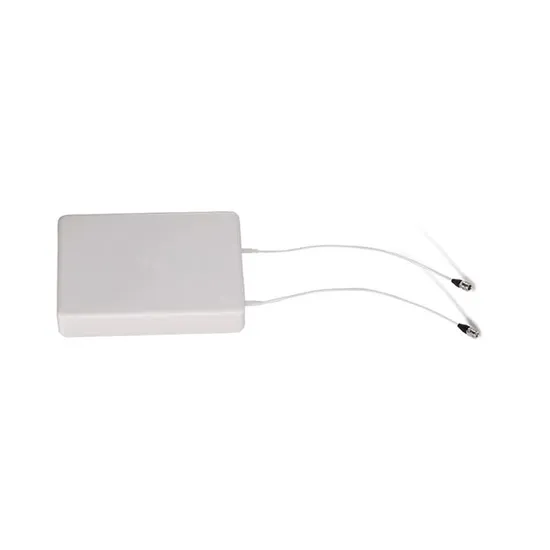

5g Indoor MIMO Directional Panel Antenna

Product Description

Items	Specifications
Ports	Port1	Port2
Frequency Range	698~960/1710~2700/3300~3800MHz	698~960/1710~2700/3300~3800MHz
Gain	≥7dBi/≥7dBi/≥6.5dBi	≥7dBi/≥7dBi/≥6.5dBi
Polarization	±45°
Vertical Beamwidth	85±15°/75±15°/60±15°	85±15°/75±15°/60±15°
Horizontal Beamwidth	80°/65°/60°	80°/65°/60°
VSWR	≤1.8
PIM3	≤-150dBc @2x33dBm
Max. Power	50W
Impedance	50Ω
Connector Type	2x4.3-10 Female or Customized
Diameter	320x210x73mm
Weight	≤1.4kg
Operating Temperature	-40 ~ +60°C
Relative Humidity Range	5% ~ 95%
Application	Indoor
Mounting Method	Wall Mounted

Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.
Q3. Do you accept OEM / ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4. Delivery & Shipment Date:
3-30 days
Q5. Customized Frequency:
We can customize Single/Double/Triple/Quand/Penta Band for cellphone signal like 2G/3G/4G(GSM/CDMA/DCS/PCS/WCDMA/LTE, etc,)
Q6. Output Power & Coverage Areas:
20dBm: 500-1500m²
23dBm: 1500-2500m²
25dBm: 2500-4000m²
27dBm: 3000-5000m²
30dBm: 5000-8000m²
Coverage is related to local signal strength, please contact us with your local condition, we can offer the best solution.

---
