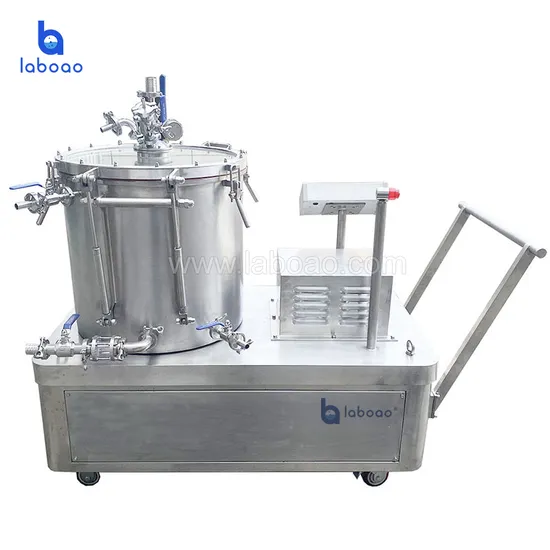

Laboao Portable Ethanol Extraction Centrifuge System

Product Description

Laboao Portable Ethanol Extraction Centrifuge System Product Description LCE-E series centrifuge is specially designed for plant extraction, and have the functions of airtight, explosion-proof, clean and mobile. EEC series centrifuge adopts flat-bottomed drum structure, which has larger volume, higher cleanliness, and non-polluting structure design. With simple operation, clean appearance, stable and excellent performance, it is liked by consumers.
The LEC-E Series solvent extraction system possesses 97% alcohol removal from biomass and designed to maximize extraction yield. The Hamho LEC-E Series are made with food-grade stainless steel for smooth operation and maintaining exceptional performance. The uniquely designed flat-bottom drum to streamline production times and reduce your operation cost.
Compared with the traditional discharge centrifuge, The machine adopts a closed structure, and the seal is sealed with ptfe; the explosion-proof motor, frequency converter, PLC, touch screen and other devices can be used to achieve the sealed explosion-proof requirements.
Detail:
Control touch screen with PLC program and temperature measuring device, the real-time temperature can be displayed on the display. Fully transparent explosion-proof sight glass, the material handling process can be clearly seen during the extraction process. S316 stainless steel centrifugal perforated drum, the overall appearance is beautiful, and the material is dried more evenly 4 layer silicone seal with leak indication, new structure for easy replacement. Alarm lamp device, higher safety. (fault warning, overload warning, etc.) The liquid inlet, liquid outlet, pressure relief valve, coolant inlet and outlet, pressure gauge, etc. can all be quickly installed and disassembled. Product Parameters

Model	Capacity for dry material(lbs/batch*)	Speed(r/min)	Motor power(KW)	Packed size(mm)	Packed weight(KG)
LEC-15E	15	2000	1.5	1100*600*1300	330
LEC-30E	30	1500	4	1600*800*1400	520
LEC-50E	50	1250	5.5	1800*1060*1450	850
LEC-100E	100	1100	7.5	1700*1400*1500	1350
LEC-150E	150	1000	11	1900*1550*1700	2000
LEC-200E	200	900	15	2300*1750*1950	2600

Features 1. Low temperature acceptable -50ºC to 50ºC
2. Model 15,30 and 50 are all transparent explosion-proof glass clamshell structure, clearly check the equipment.
3. Automatic extraction process, the program can set the drum positive and negative rotation speed, time and cycle times, and can switch to manual control.
4. Dehydration speed and time can be set.
5. Temperature display.Vacuum pressure display.
6. The bottom is provided with leakage indication port, if any leakage can be found in time.
7. Zipper filter bag for quick loading and unloading.Designed for solo operation.

---
