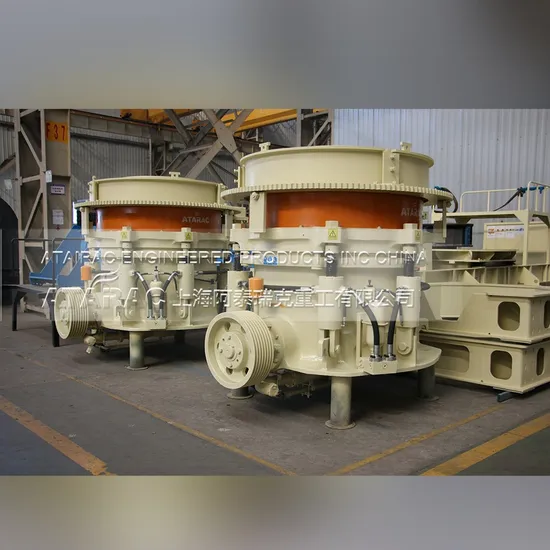

High-Efficiency Multi-Cylinder Hydraulic Cone Crusher for Mining

Product Description

Introduction:
HPY series mutil-cylinder cone crusher developed and manufactured by our company is currently the most advanced cone crusher in whole China. It aims at the high end market and is integrated with the advanced mechanical, electrical and hydraulic technologies as a whole, which achieves the perfect crushing efficiency. HPY cone crusher features in robust casting steel frame, forged alloy main shaft, and high accurate gear transmission system. Combined with one suitable crushing chamber from all optional and with PLC automatic control system, the HPY cone crusher could fully play its performance and advantages. Compared with related similar type crusher, HPY has advantages of larger production capacity, bigger crushing ratio, better end-products shape, lower power consumption, higher automation, reliability, easy operation, and lower wearing part cost, etc.
Feature: Laminating crushing, larger capacity, very good final products shape. Fixed main shaft, larger crushing force. The high-strength forging main shaft is super robust and durable. Hydraulic protection and chamber clearing system. Hydraulic motor adjusting system, reliable and quick. Best anti- dust system ensures the clean of lubrication system. PLC intelligent operating system. More than 90% spare parts can be changed, includeing mantle, bowl liner, mainshaft, etc.
Technical Parameter

Model	Installation Power (kw)	6mm	8mm	10mm	13mm	16mm	19mm	22mm	25mm	32mm	38mm	45mm	51mm
HPY300	220	75-95	100-130	110-140	145-180	170-215	190-230	220-260	225-275	245-320	300-375	345-430
HPY400	315		105-140	135-170	180-225	215-275	250-320	275-345	285-365	315-425	350-480	400-540	455-615
HPY500	400		135-170	170-220	225-290	270-245	310-400	340-425	360-450	400-530	425-585	500-670	560-770
HPY800	630			240-335	315-420	375-500	420-540	465-590	490-725	545-790	585-920	670-990	765-1100

Remarks: the above capacity is based on the limestone open operation with loose density 1.6t/m³, in case of close operation, the capacity is
15%-30% higher than in open operation.
Cavity Selection

Model	Cavity Type	Standard		Short Head
		Minimum setting (mm) A	Feed opening(mm)B	Minimum setting (mm) A	Feed opening(mm)B
HPY300	EF			6	25
	F	13	107	6	25
	M	16	150	8	53
	C	20	211	10	77
	EC	25	233
HPY400	EF			6	30
	F	14	111	6	40
	M	20	198	8	52
	C	25	252	10	92
	EC	30	299
HPY500	EF			6	35
	F	16	133	8	40
	M	20	204	10	57
	C	25	286	13	95
	EC	30	335
HPY800	EF
	F	16	219	5	33
	M	25	267	10	92
	C	32	297	13	155
	EC	32	353

Remark:EF= Extra Fine F=Fine M=Medium C=Coarse EC=Extra Coarse
Standard Configuration
Packing & Delivery
About our company

---
