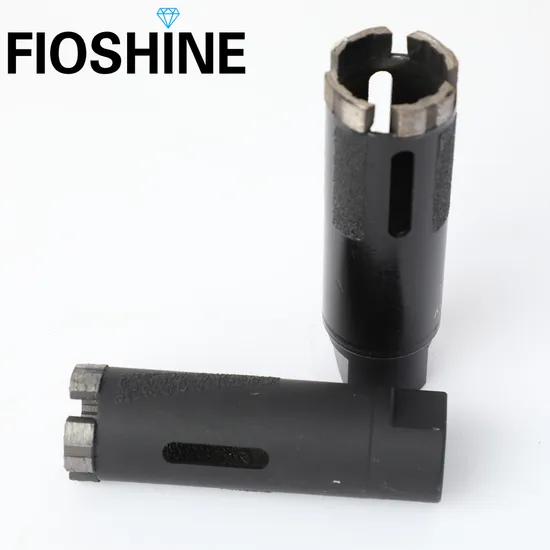

Laser Welded Stone Diamond Core Drill 25-102mm

Product Description

Product DescriptionThese stone core drill is expertly designed for drilling Marble, Granite, Tile Ceramic, Stone…etc.
Dry or wet use for granite marble.
Not recommend for reinforced concrete and solid concrete.
Ideal for drilling the faucet mounting holes in granite/quartz/marble countertop&floors.
Provide a fast, stable and smooth drilling
Laser welded technology avoids segments off when dry working.
Vacuum brazed side protection offers clean cut & steel core protection.
Suitable for angle grinders.
Specifications

Item No.	Diameter	Segment Height	Connection	Total Length
FSDLS025	25mm	9mm	5/8"-11/ M14/M16	100mm/Customized
FSDLS030	30mm	9mm	5/8"-11/ M14/M16	100mm/Customized
FSDLS032	32mm	9mm	5/8"-11/ M14/M16	100mm/Customized
FSDLS035	35mm	9mm	5/8"-11/ M14/M16	100mm/Customized
FSDLS038	38mm	9mm	5/8"-11/ M14/M16	100mm/Customized
FSDLS040	40mm	9mm	5/8"-11/ M14/M16	100mm/Customized
FSDLS044	44mm	9mm	5/8"-11/ M14/M16	100mm/Customized
FSDLS051	51mm	9mm	5/8"-11/ M14/M16	100mm/Customized
FSDLS056	56mm	9mm	5/8"-11/ M14/M16	100mm/Customized
FSDLS063	63mm	9mm	5/8"-11/ M14/M16	100mm/Customized
FSDLS076	76mm	9mm	5/8"-11/ M14/M16	100mm/Customized
FSDLS083	83mm	9mm	5/8"-11/ M14/M16	100mm/Customized
FSDLS089	89mm	9mm	5/8"-11/ M14/M16	100mm/Customized
FSDLS102	102mm	9mm	5/8"-11/ M14/M16	100mm/Customized

Advantage&FeaturesLaser welded-High welding strength ensure a safety drilling.
High quality diamond grit and high-quality metal bond enable a highest level of drilling performance and excellent longevity.
Turbo segments provide a fast speed.
Vacuum brazed side protection offers clean cut & steel core protection.
Ideal for drilling the faucet mounting holes in granite/quartz/marble countertop&floors.
Dry or wet use, provide a fast, stable and smooth drilling
Suitable for angle grinders.
ApplicationLaser welded stone core drills have a wide application for drilling holes in Marble, Granite, Tile Ceramic, Stone…etc.
Our stone core drills have a high level of drilling performance and excellent lifespan, providing a fast, stable and smooth drilling
Delivery timeFull production capacity of diamond core drills can be up to 5000pcs/month, which ensure a short delivery time.
For samples, it will be 5 days to prepare.
For batch orders, we will need 2-3 weeks to deliver.
More Diamond ProductsAt Fioshine, you can find full range of professional diamond tools for drilling, cutting grinding, includingWet core drill, dry core drill, stone core drill, sintered/brazed/laser welded diamond saw blades, diamond wire saw, diamond cup wheels, diamond grinding discs, grinding plates and diamond grinding pads. You can see our hot selling types below.
Company ProfileFIOSHINE, as an enterprise who specialize in production, R&D and distribution of diamond tools, have been committed to innovating and improving our products to meet market demands and offer you a full range of superior quality diamond products.
Our main products include: laser welded/brazed/sinter hot-pressed diamond saw blades, diamond cup wheels and tooling, laser welded diamond core drills, diamond wire saw…... including tailor-made advice for each application as well as appropriate services. The latest technology as well as management processes have been adopted to achieve the highest level of quality and production efficiency.
FIOSHINE is well known for professional diamond products and services. Our business covers more than 30 countries and regions including North America, Europe, Middle East, Australia and South America.
We always listen to your requirements and provide you with professional products and solutions. Fioshine always stays close by

---
