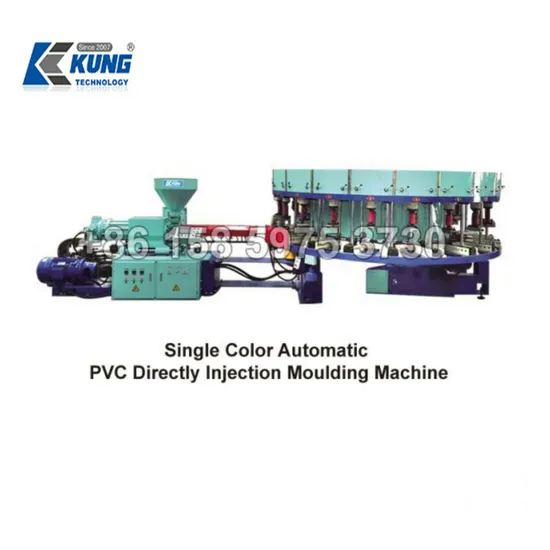

Single Color PVC Directly Injection Moulding Machine Shoemaking Machinery

Product Description

Item	Unit	Specification	Specification
Color		Single	Single
Number of station	Pcs	12	20
Screw diameter	mm	75	75
Screw rotating speed	r/min	0-72	0-160
Screw length and diameter ratio		18:1	18:1
Max injection capacity	Cm3	580	580
Plastifying capacity	g/s	40	40
Sliding platform travel	Mpa	5.0	5.0
Travel for lifting the cramp	Mpa	3.0	3.0
Clamping way		scissors	scissors
Mention last trip	mm	60	60
Shoe cramp height	mm	210-260	210-260
Mould frame dimensions(LxWxH)	mm	340x180x60	340x180x60
Total power of the whole machine	kw	20.5	20.5
Outline dimensions of the whole machine (LxWxH)	mm	5735x2910x1955	6135x3310x1955
Total weight of the whole machine	kg	4800	11800

Company Information:
Kingkung Technology Group Co., Ltd, providing the one-stop solution for shoe making!We are specialized in offering:
Shoe making machine (PVC,TR, EVA,PU,TPU...)
New and used shoe sole mould(PCU, PU...)
Shoes, outsole and upper
Shoe material( PVC/PU leather...)
Shoe accessories
Shoe chemicals
Other hot selling Internet products and so on...
