Hydraulic Reversible Plough Tractor Implements for Agricultural

US$1,000.00-2,000.00 10 Sets (MOQ)

Basic Info.

Model NO.

1LF

Application Field

Agriculture

Farming Policy

Dry Cultivating Machinery

Power Source

Tractor

Operation

Arable Machinery, Continuous Running Operation

Traction Type

Hanging

Drive Type

Tractor

Arbor Configuration

Vertical Shaft

Color

Red, Blue, Yellow, etc.

Warranty

1 Year

Matched Power

90-180HP

Weight

1000-1800

Profile Cut Single Piece(mm)

350

Deep of Cut (mm)

350-450

Width of Cut (mm)

1000-1800

Transport Package

Iron Box

Trademark

LEYUAN

Origin

Shandong China

HS Code

84321000

Production Capacity

5000set /Year

Product Description

Product Parameters
Applicable for dry sand soil. With whole hanging, simple structure, wide application, good working, etc.

Model	1LF-325	ILF-425	ILF-525	ILF-625	ILF-725	ILF-327	ILF-427	ILF-527	ILF-627	ILF-727
Single ploughbody working width(mm)	250					270
Max. working width (mm)	750	1000	1250	1500	1750	810	1080	1350	1620	1890
Max. working depth (mm)	150-240
Matched power (hp)	30-50	40-80	55-90	80-120	90-140	30-50	40-80	55-90	80-120	90-140
Weight (kg)	420	520	720	840	980	420	520	720	840	980
Linkage	Three-point mounted

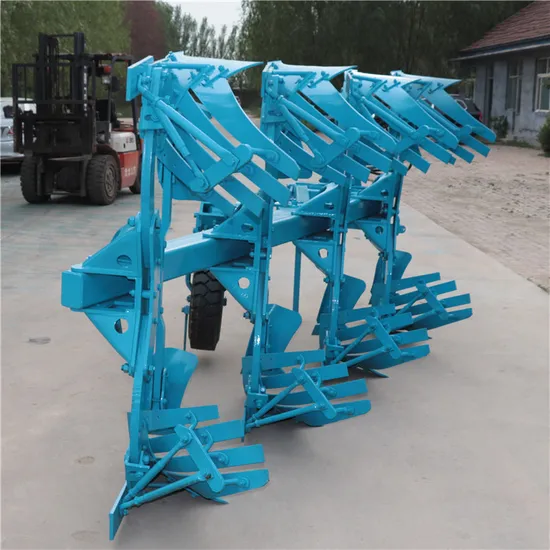

Detailed Photos
