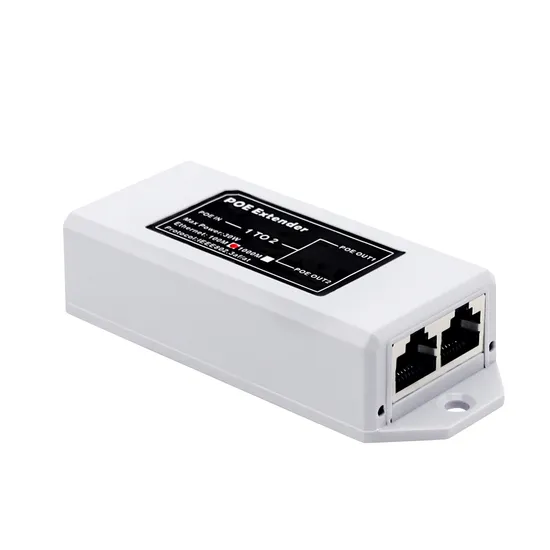

Custom IEEE802. Af/at 3 Port RJ45 Gigabit 1 to 2 Poe Extender 1000m Factory Poe Power Supply

Product Description

10/100/1000Mbps IEEE 802.3af/at 1 Input 2 Output PoE Repeater Extender for IP Camera 1input 2 output PoE Repeater Extender Rj45 1000M Smart PoE Extender Product Name 3 port PoE Extender POE power supply standard Supports IEEE802.3af/at POE power supply POE Port input power 30W max POE port output power 25.5W (Max),1-2 port smart distribution Network rate 100Mbps Output Supply Pin 1/2(+)-3/6(-) Lightning protection level 2kv 8/20us Size of product 10.9*4.2*2.3cm Appearance Material ABS Product details

Product Parameters
Product name	1 to 2 PoE extender
POE port	IEEE802.3af/at standard POE power supply
Network Interface	1*10/100Base-TX uplink PD receive port,2*10/100BaseTX POE ports
Forwarding Mode	Store and Forward
MAC address table	1K
Switching capacity	0.6Gbps
POE port input power	30W(MAX)
POE port output power	25.5W (max),1-2 ports intelligently assigned
Transmission rate	100Mbps
Output power pins	1/2 (+),3/6 (-)
Indicators Yellow	POE power indicator, Green: network signal indicator
Lightning protection level	2kv 8/20us
Operating Temperature	-10°C-60-C
Overall Dimension	10.9*4.2*23cm
Material	ABS
Product Weight	0.08KG

---
